TARGETTI

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 6 stainless steel screws, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector, wall washer lens with optical structure and integral, adjustable glare shield, tilt range: 0‑13°, lockable, 0,8 m cable H07RN‑F3G1, integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 30° / 75°, luminous flux: 424 lm, wattage: 11 W, delivered lumens 40 lm/W, protection type IP68, protection class I, impact resistance IK10, dimensions: Ø 180 mm, width 152 mm, weight 2.7 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks.

Bendable Serrated Aluminum Profile

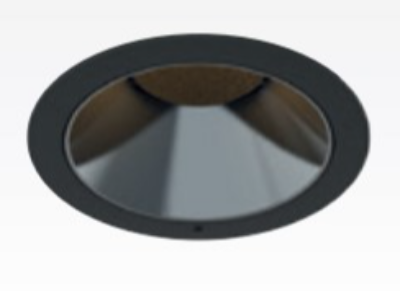

The OIKO Wide recessed spotlights create a wide beam of light through an integrated secondary reflector in combination with a special diffuser. Through a Visual Optimization Baffle (VOB), the spotlight offers improved anti-glare properties and thus creates harmonious lighting moods. The individualisation in the 25+5 PROLICHT colours supports customer-oriented and holistic concepts. OIKO has a low-seal die-cast cooling system that allows for a high lumen package and prevents backlighting.

Spotlight to be installed on 3-phase track. With LED light source. 220-240V, 50-60Hz power supply integrated. Construction material Aluminium, IP20.
