FLOS

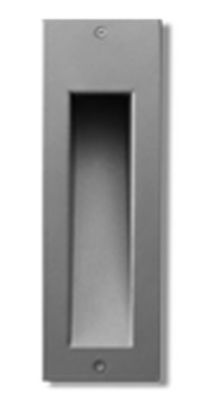

I-BRICK is a range of wall recessed luminaires with LED light sources plus a good glare control allows it to be installed in most places where a comfortable illumination is needed. The low energy consumption LED module saves operating cost while providing acceptable lighting levels. I-BRICK is available in five different styles in two size. The shallow housing can be installed in either wall or step where recess depth is limited. The high quality LED drivers is integrated inside the luminaire for ease of installation. I-BRICK is commonly used to illuminate stairways, pathways and walls.

"Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. Aluminium protective guard of 8 mm thickness. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process: 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 10 Maximum load capacity 2000 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

Protection class IP68 – up to 3m water depth. Protection class IP69 - protection against high pressure and high jet water temperatures. Entirely made of stainless steel 316Ti 1.4571. Mounting foot adjustable through 180°. POW-LED cold white, warm white, neutral white. POW-LED blue. POW-LED RGB. Multichip POW-LED RGB. Multichip POW-LED RGB-W. Multichip POW-LED Dynamic white. Operating mode: constant current. Rotationally symmetric light distribution. Screw-type cable fastener with M16x1.5, PVDF. Constant-current power source/RGB controller external. Supplied with lamp

Prologe 145 single directional (tilt and adjustble), black, gear incl. Surfacemounted luminaire for ceilings.
