Die cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Marine grade stainless steel AISI 316L front trim 2 mm thick. Toughened glass diffuser 12mm thick for COMPACT 200, 12mm thick for COMPACT 275, 15mm thick for COMPACT 360. Luminaire hard wired with single neoprene cable with cable gland. Stainless steel screws. Recessing box in polypropylene arranged for cable entries in all 4 sides. Silicone gaskets.

Luminaire made of aluminium alloy, aluminium and stainless steel. Clear synthetic cover with optical structure. Reflector made of pure anodised aluminium. Mounting plate with 3 fixing holes ø 6.5 mm. Angle 120° · Pitch circle ø 122 mm. 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 5 G 1.5@ Connecting terminal 2.5@ with plug connection. Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz. DC 176-264 V, During DC operation the LED power is reduced to 50 % DALI controllable. A basic isolation exists between power cable and control line. Safety class I. Protection class IP 65. Dust-tight and protection against water jets. Impact strength IK10. Protection against mechanical. impacts < 20 joule. c – Conformity mark.

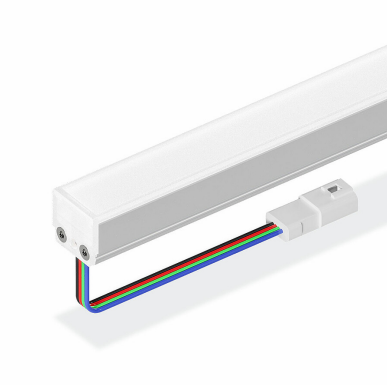

Part of the extensive Linear One® family, these attractive aluminum-bodied, natatorium-ready (IP66) linear fixtures are available in 1’ and 4’ lengths and are easily interconnected in series to simplify installation. Flexibility is key, with a wide choice of configuration combinations, including: multiple emitter types, a full range of TIR optics, plus glare shields and louvers. All of which are fulfilled through our Acclaim Modular system in Los Angeles to ensure industry-leading delivery times. Smooth single-channel dimming is delivered under 0-10V control. The internal auto-sensing power supply within each unit can accept mains inputs between 100 to 277VAC at 50 or 60Hz.
