FLOS

RECESSED DOWNLIGHT
INDOOR LIGHTING

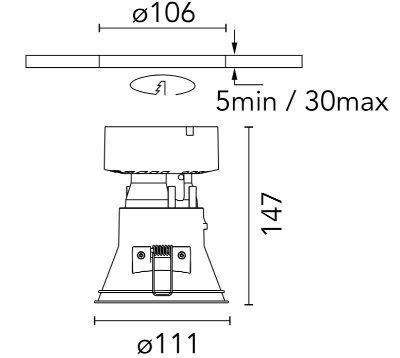

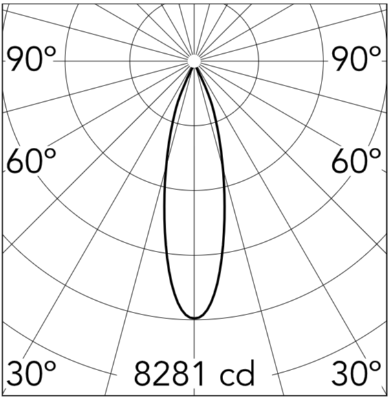

EASY KAP Ø105 FIXED_05.7006.B1

Recessed luminaire with LED light source. Remote transformer not included. Installation frame not necessary. Diffusing lens included.

Specification

Power
22.8W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
2222LM
Finishing
WHITE
IP Rating
IP20
Color Rendering
CRI>90
Driver
0-10V DRIVER

See more

LINEALIGHT
LED STRIP
OUTDOOR LIGHTING

Single emission led strip for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 36 topled LEDs with CCT of 3000 K and a CRI 85; the source luminous flux is 2300 lm, with a 115.0 lm/W nominal luminous efficacy. The device body is made of technopolymer and features a white finish; the diffuser is made of pu. The ingress protection degree is IP67; the total weight is of 0.290 kg. The power supply driver is not provided and is to be order

XAL
RECESSED DOWNLIGHT
INDOOR LIGHTING

Recessed square spotlight in die-cast aluminium; 1 lamp; surface jet black; installation without tools in mounting set due to patented ball catch system; square installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows;

LINEALIGHT
SURFACE MOUNTED DOWNLIGHT
OUTDOOR LIGHTING


MEYER
SPOTLIGHT
OUTDOOR LIGHTING
Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, mounting bracket powder coated aluminum with tilt scale: 2 drilled holes Ø 7 mm, spacing 40 ‑ 60 mm, 1 centre hole Ø 21 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, Beam angle (fwhm): 22°, luminous flux: 1445 lm, wattage: 55 W, delivered lumens 26 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,076 m², dimensions: Ø 215 mm, width 390 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.
