FLOS

Shielded bollard with rotationally symmetrical, broad spread light distribution. For the illumination of squares, access roads and entry areas. A robust and distinctive luminaire with impressive light graphic and high illuminance on the floor space. The luminaire consists of aluminium profiles, cast aluminium and stainless steel.IP65,IK07.

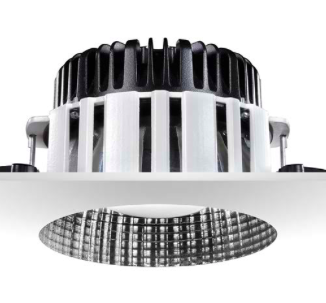

MAGIQ is a family of sophisticated spot lighting that perfectly sets the scene for architecture and interior design. In addition to the existing MAGIQ WALLWASH module with its five integrated, well-known and innovative reflectors, which provide a wide, uniform light pattern in rooms with high ceilings, PROLICHT has designed MAGIQ HOLLOW WALLWASH as an addition to this range. The new development uses eight fully integrated MDB-W reflectors that are flush with the ceiling.

Luminaire made of copper and stainless steel. Opal glass with screw neck. Silicone gasket. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 2 fixing holes ø 5.5 mm · 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ with plug connection. Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz. DC 176-264 V. Safety class I. Protection class IP 44. Protected against granular foreign bodies, > 1 mm and splash water Impact strength IK04, Protection against mechanical impacts < 0.5 joule r – Safety mark, c – Conformity mark.

Diameter (mm)124

Width (mm)124

Height (mm)172
