Product Detail
Home Products Detail

Products

FLOS

RECESSED DOWNLIGHT
INDOOR LIGHTING
03.9955.40A

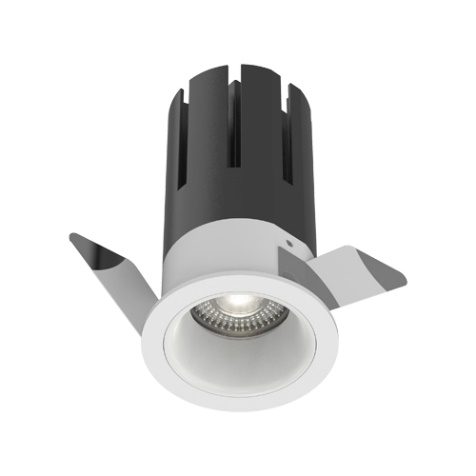

LED lighting module, with low glare, to be inserted in the recessed frames (not included), installation through a bayonet system with interchangeable spots. Remote driver not included.

Specification

Power
15W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1226LM
Finishing
WHITE
IP Rating
IP20
Color Rendering
CRI>90
Driver
0-10V DRIVER

See more

FORMALIGHTING
RECESSED DOWNLIGHT
OUTDOOR LIGHTING
Round recessed uplight with trim in stainless steel (AISI 316) and light body in cast aluminium. Light trim inclusive of toughened safety glass, weatherproof durable silicone gasket and external screws made of stainless steel. Thermoplastic recessed box included additional recessed box for concrete installation available upon request. Weight resistance 1300/3000 kg. Adjustable version tiltable vertically 0-15° in two directions.
CDN LIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING


MEYER
UP/DOWN WALL LIGHT
OUTDOOR LIGHTING
Housing made corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, UV stabilised, impact‑resistant polycarbonate cover, silicon gasket, with 4 stainless steel screws, mounting flange: 2 drilled holes Ø 6.5 mm, spacing 422 mm, tilt range: 120°, cable gland: PG11, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks , integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 15° / 103°, luminous flux: 2238 lm, wattage: 29 W, delivered lumens 78 lm/W, protection type IP65, protection class I, impact resistance IK10, windage area 0,06 m², dimensions (L×H×W): 470 × 47 × 135 mm, weight 2.9 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
WE-EF
SURFACE MOUNTED LIGHT
OUTDOOR LIGHTING
Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Two cable entries. Luminaire can be mounted for up or down lighting. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering.
