DALITEK

CONTROL SYSTEM
CONTROL SYSTEM

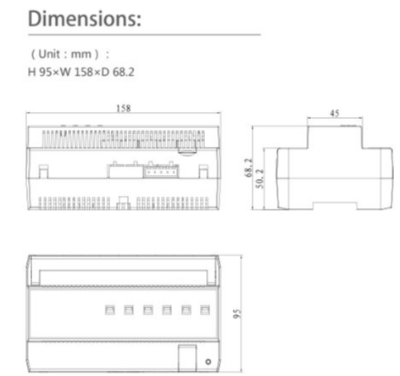

DR620-LC-S

The module realizes the opening and closing control ofsixcircuits by controlling six20A single pole single throw (SPST) relays, and various logic timing control can berealized through configuration. The module has an internal temperature sensor to monitor the operating temperature to ensure safety.The module is compatible with other a dry contact input module.The module can form a control system with panel, clock, sensor and other equipmentthrough RS485 bus.

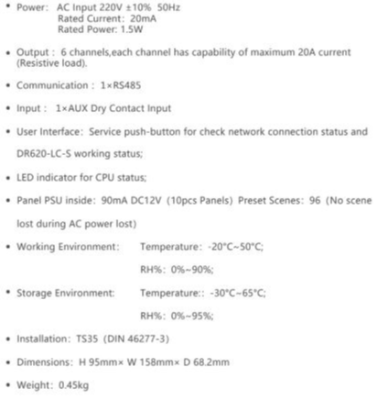

Specification

Power
NA
Color Temperature
NA
Light Source Type
NA
Lumen Output
NA
Finishing
BLACK
IP Rating
IP20
Color Rendering
NA
Driver
ON/OFF DRIVER

See more

BEGA
WALL LIGHT
INDOOR LIGHTING

Wall indoor luminaire made of handblown opal glass, satin matt and metal fitting, for all lighting tasks. They are ideal for places where a soft and uniform lighting distribution is required. Product description Metal housing, finish colour white. Hand-blown opal glass, satin matt 2 mounting holes ø 6 mm Distance apart 220 mm 2 cable entries for through-wiring for mains cable up to ø 10.5 mm max. 3 × 1.5@ Connecting terminals 2.5@ Earth conductor connection LED-Module for mains voltage 220-230 V y 50/60 Hz BEGA Thermal Switch® Temporary thermal shutdown to protect temperature-sensitive components. This product contains light sources of energy efficiency class(es) G.

LINEALIGHT
WALL LIGHT
INDOOR LIGHTING
Single emission wall lights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 1.2 kg. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98724 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
LUCE & LIGHT
BOLLARD
OUTDOOR LIGHTING

Surface ,mount Bollard for outdoor applications with zoomable beam. Luminaire body made of ANTICORODAL EN AW 6082 low-copper content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. IK08, IP66
