SPARK

TRACKLIGHT

INDOOR LIGHTING

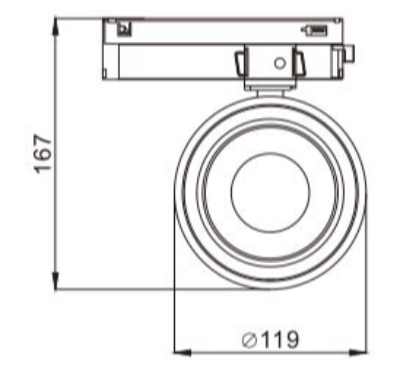

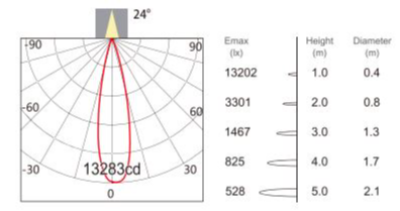

SPK9004-25W-24D

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request. It come with different types of beam angles.

Specification

Power

25W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2250LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source is composed of 120 topled LEDs. The device body is made of uv resistant polycarbonate and features a transparent finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP67; the total weight is of 0.39 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.250 m length. The device features protection class III and can be wall lights, ceiling or floor-mounted with an outer casing, code 98842 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

BEGA

WALL LIGHT

OUTDOOR LIGHTING

Luminaire made of aluminium alloy, aluminium and stainless steel. Opal glass. Silicone gasket. Mounting plate with 2 fixing holes ø 5.2 mm · 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Plug connection. Connecting terminal 2.5@ Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz, DC 198-280 V. Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water. Impact strength IK06. Protection against mechanical impacts < 1 joule, r – Safety mark, c – Conformity mark.

LIGHTFORMS

SURFACE TRACKLIGHT

INDOOR LIGHTING

This minimal track spot is available in a range of body and baffle colours and, with its classic form, the style can fits into most applications. The inbuilt driver maintains its minimal design while the bespoke heatsink housing ensure long lifetime. The premium LED chip and polycarbonate optics provide a range of beam angles and CCT and CRI outputs.
