FORMALIGHTING

RECESSED DOWNLIGHT

INDOOR LIGHTING

M566BC22_903036DC10

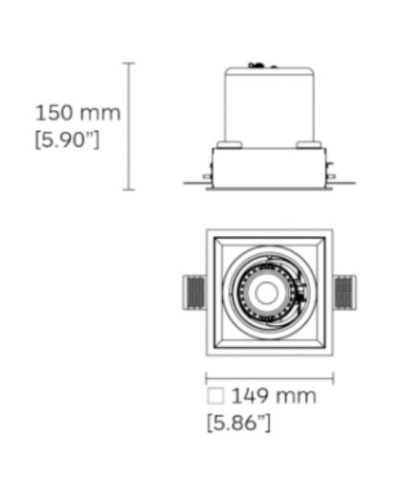

Square recessed motorized luminaire with retractable light head. Mounting trim and light head are made of cast aluminium, recessed light housing made of painted metal. Moto-Palla In&Out is available in 3 different light head diameters: 66mm, 100mm and 130mm. The luminaire includes brackets for trim installation on ceiling thickness max. 25 mm or trimless installation on ceiling thickness max. 30 mm. Two remote controlled DC motors drive the movements of the fixtures. The fixtures are rotatable horizontally 350° and, tiltable vertically in two directions (0°-10° In, 0°-90° Out). The movements of the fixture, as well as the intensity and the colour tuning of the light, are controlled via CASAMBI™ application.

Specification

Power

13.5W

Color Temperature

3000K

Light Source Type

LED

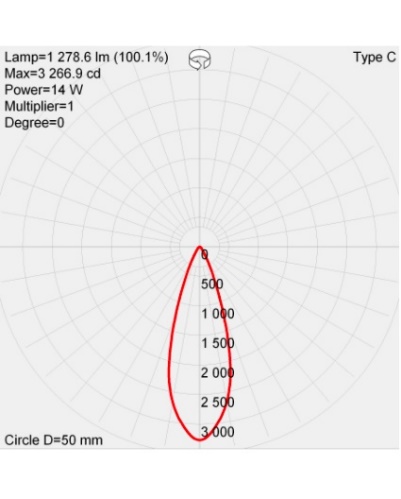

Lumen Output

1273.95LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

CASAMBI

SIMES

INGROUND LINEAR LIGHT

OUTDOOR LIGHTING

Fixing base and recessing box in extruded anodized EN AW-6060 aluminium housing (copper free) with high corrosion resistance. Mechanical resistance IK 10 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: G. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

TRAXON

LINEAR LIGHT

OUTDOOR LIGHTING

EWO

POLE LIGHT

OUTDOOR LIGHTING

Housing accommodates 1 LED lighting unit (LED Board: 16 LED)Various light distributions for area, street and walkway lightingCurrent feed: 200 mA–650 mA, depending on ambient temperature Max. Luminous flux [lm] 3,500

Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request . Electronic operating device with DALI, 1–10 V interface, stand-alone programming or Line Switch available upon request

Colour temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70) CRI ≥ 80, other colour rendering indexes available upon request. IP66

ERCO

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Skim surface-mounted luminaire for situations where ceiling architecture does not allow the installation of recessed downlights. The same lens system is used here as for Skim recessed luminaires. With efficiency and visual comfort, diverse light distributions and available in two sizes, the luminaire is suitable for a variety of applications like offices, shops and public buildings. Surface-mounted luminaires are the straightforward lighting solution especially in new energy-efficient buildings with solid concrete ceilings. Details such as securing the luminaire with snap hooks or optional spacers for surface-mounting make mounting easier.
