Product Detail | Bloxlimited

FORMALIGHTING

RECESSED DOWNLIGHT

INDOOR LIGHTING

M568BC33_903038DC10

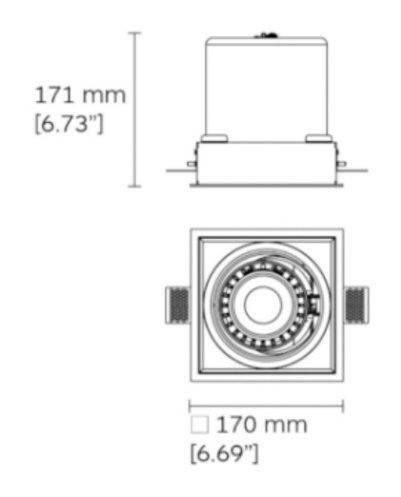

Square recessed motorized luminaire with retractable light head. Mounting trim and light head are made of cast aluminium, recessed light housing made of painted metal. Moto-Palla In&Out is available in 3 different light head diameters: 66mm, 100mm and 130mm. The luminaire includes brackets for trim installation on ceiling thickness max. 25 mm or trimless installation on ceiling thickness max. 30 mm. Two remote controlled DC motors drive the movements of the fixtures. The fixtures are rotatable horizontally 350° and, tiltable vertically in two directions (0°-10° In, 0°-90° Out). The movements of the fixture, as well as the intensity and the colour tuning of the light, are controlled via CASAMBI™ application.

Specification

Power

22.3W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

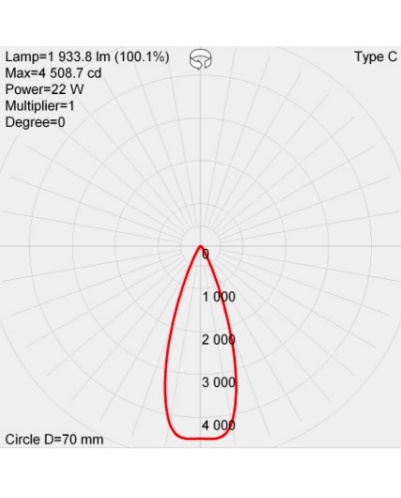

1948.98LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

CASAMBI

LINEALIGHT

PROJECTOR LIGHT

OUTDOOR LIGHTING

Single emission projectors for outdoor application. The natural white LED light source with a spot light distribution is composed of 1 arrayled LEDs. Luminaries body is made of die-cast aluminium en ab - 46100 and features a grey ral 9006 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66; IK07

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source is composed of 3 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 537 lm, with a 89.5 lm/W nominal luminous efficacy. The device body is made of plaster and features a white finish; the diffuser is made of polyamide. The ingress protection degree is IP20; the total weight is of 0.500 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 6 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 160 x 90 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source is composed of 36 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 4.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98726 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of uv resistant polycarbonate and features a embossed black ral 9005 finish, processed by means of liquid painting; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.2 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 65 x 65 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
