M568BL22_90FS18DC10

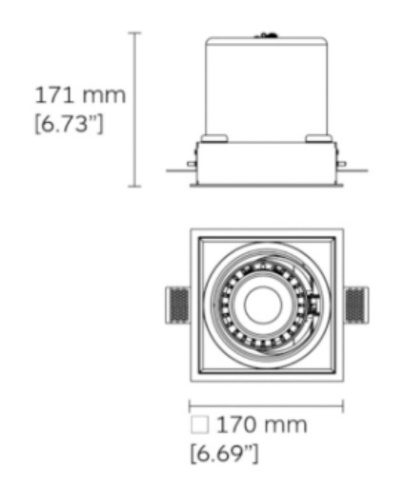

Square recessed motorized luminaire with retractable light head. Mounting trim and light head are made of cast aluminium, recessed light housing made of painted metal. Moto-Palla In&Out is available in 3 different light head diameters: 66mm, 100mm and 130mm. The luminaire includes brackets for trim installation on ceiling thickness max. 25 mm or trimless installation on ceiling thickness max. 30 mm. Two remote controlled DC motors drive the movements of the fixtures. The fixtures are rotatable horizontally 350° and, tiltable vertically in two directions (0°-10° In, 0°-90° Out). The movements of the fixture, as well as the intensity and the colour tuning of the light, are controlled via CASAMBI™ application.

Specification

Power
21.9W
Color Temperature
FULL SPECTRUM SUNLIGHT
Light Source Type
LED
Lumen Output
612LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 90
Driver
CASAMBI

See more

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.047 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
WALL LIGHT
OUTDOOR LIGHTING
Double emission wall lights for outdoor application. The warm white LED light source is composed of 2 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 1.99 kg. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
ELR
RECESSED DOWNLIGHT
INDOOR LIGHTING


BEGA
FOOT LIGHT
OUTDOOR LIGHTING
Unshielded luminaire for installation in walls or stairs. Installation possible in horizontal or vertical burning position. Luminaire made of aluminium alloy, aluminium and stainless steel. IP65,IK06. DIMENSION: (W)50x(H)220x(D)75mm.
