FORMALIGHTING

RECESSED DOWNLIGHT
INDOOR LIGHTING
M570BL23_90FS19DC10

Square recessed motorized luminaire with retractable light head. Mounting trim and light head are made of cast aluminium, recessed light housing made of painted metal. Moto-Palla In&Out is available in 3 different light head diameters: 66mm, 100mm and 130mm. The luminaire includes brackets for trim installation on ceiling thickness max. 25 mm or trimless installation on ceiling thickness max. 30 mm. Two remote controlled DC motors drive the movements of the fixtures. The fixtures are rotatable horizontally 350° and, tiltable vertically in two directions (0°-10° In, 0°-90° Out). The movements of the fixture, as well as the intensity and the colour tuning of the light, are controlled via CASAMBI™ application.

Specification

Power
30.5W
Color Temperature
FULL SPECTRUM SUNLIGHT
Light Source Type
LED
Lumen Output
710.98LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 90
Driver
CASAMBI

See more

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of uv resistant polycarbonate and features a embossed black ral 9005 finish, processed by means of liquid painting; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.3 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 66 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
IGUZZINI
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Next-generation recessed lighting fixture "Laser Evo", designed to offer high optical performance, maximum efficiency, and an integrated design for various architectural environments. Recessed mount designed for easy and precise installation in a Ø40 mm mounting hole. LED color temperature 3500K with high color rendering index. CRI90 HE. Version with reflector. With Medium optics. Front baffle in "Metal Chrome". Class III lighting fixture.

LUCI
LED STRIP
INDOOR LIGHTING

Updated with low wattage high lumen LED series and 2 wattage variations Increased 160％ efficacy Narrower spread angle with the lens in diffused cover

IGUZZINI
SURFACE TRACKLIGHT
INDOOR LIGHTING

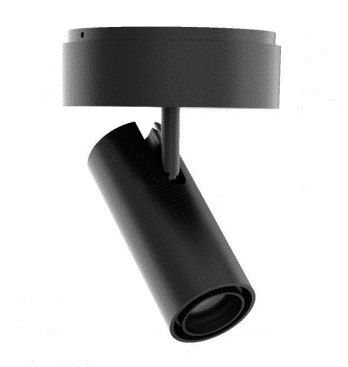

Miniaturised adjustable magnetic spotlight with adapter for installation on 48V low voltage track. Luminaire of die-cast aluminium with passive dissipation system. The adapter made of a thermoplastic material includes the DC/DC driver circuit with a DALI power line dimmable function. Integrated «power line» technology allows each spotlight on the track to be adjusted separately. The swivel joints allow the spotlight to be rotated by 360° and tilted by 160° with the option of installing the spotlight on a 48V track in both an "up" and "down” position.
