Product Detail | Bloxlimited

PHOS

RECESSED DOWNLIGHT

INDOOR LIGHTING

Eyeconic 4W 30° (27K)

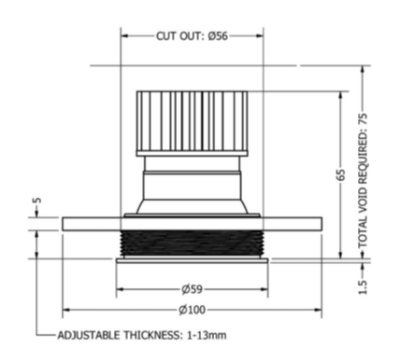

The Eyeconic Nemo Mini Trim Fixed: a recessed, versatile light fixture designed for boat installations. With its special adjustable frame, it effortlessly accommodates varying ceiling depths. Featuring directional downlighting with a sleek Ø59mm bezel and beautifully sculpted anti-glare baffle, it offers flexible lighting options for marine environments.

Specification

Power

Color Temperature

2700K

Light Source Type

LED

Lumen Output

296LM

Finishing

WHITE

IP Rating

IP65

Color Rendering

>90

Driver

0-10V DRIVER

MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector with matt finish, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 54° / 11°, luminous flux: 4225 lm, wattage: 48 W, delivered lumens 88 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 192 × 162 × 140 mm, weight 2.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

PHOS

ADJUSTABLE DOWNLIGHT

OUTDOOR LIGHTING

The Maxi Eclipse Mini Trim is an adjustable, recessed downlight with a Ø120mm Bezel and features a beautifully sculpted anti-glare baffle. The Maxi Is a high output downlight while still maintaining a surprisingly compact form. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires. 360° rotation, 28° Tilt.

MEYER

INGROUND UPLIGHT

OUTDOOR LIGHTING

The Uplight S product range are luminaires with extremely shallow recess depth. This product feature ensures that the luminaries do not collide with existing infrastructure in the ground, such as electrical or water conduit. Adjustable collimator optics with various different light distributions make these products versatile tools for architectural and landscape lighting. Optimal glare control can be achieved by the use of honeycomb louvres as an accessory.

SPARK

LED NEON TUBE

OUTDOOR LIGHTING

Flexible Neon strip Top bend available CCT from 2700K, 3000K and 4000K. Able to work with dimming and non-dimming driver. Accessories have mounting bracket, mounting rail and flexible rail.

DIMENSION : (L)1000*(W)12*(H)12mm
