ENDO

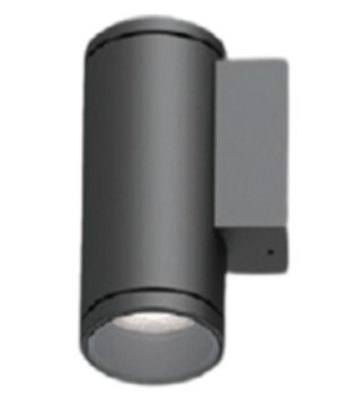

Single emission lines for outdoor application. The warm white LED light source with a flood light distribution is composed of 9 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98672 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Housing: cast aluminium, black powder-coated, designed as heat sink, with connection cable L 850mm. 0°-30° tilt. Fixing ring: polymer, black, rotatable through 360°. Mounting ring: Polymer, white (RAL9002). Expanding spring fixing for ceiling thicknesses of 1-25mm. 2-pole terminal block. Includes control gear. LED module: high-power LEDs. Collimating lens made of optical polymer. Cover: Polymer, white (RAL9002).

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely. Reflector come with Silver, Chrome Black and White and honeycomb accessory available upon request.

Aluminium die cast housing in EN AB-47100 (low copper content) with high resistance against corrosion. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Silicone gaskets. Painting Process : 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 06. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
