KOIZUMI

TUNABLE DOWNLIGHT

INDOOR LIGHTING

XD91898L_84W

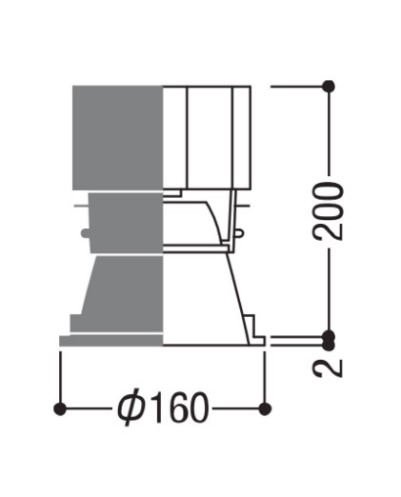

150mm Recessed hole high powered dimming and tunable downlight series, light colours can be changed all without reducing the brightness. These lights ensured sufficient levels of brightness for various types of spaces and can be used for a wide range of lighting through the use of dimming and tunable. TW 2700K - 5000K.

Specification

Power

84W

Color Temperature

4000K

Light Source Type

LED

Lumen Output

7930LM

Finishing

ALUMINIUM MIRROR FINISH

IP Rating

IP20

Color Rendering

CRI 82

Driver

DIMMABLE DRIVER

WIBRE

UNDERWATER LIGHT

OUTDOOR LIGHTING

Protection class IP68 – up to 3m water depth. Entirely made of stainless steel 316Ti 1.4571. Mounting foot adjustable through 180° or 90°. QT32, HIT-CRI, HIT-DE, HST-DE with aluminium reflector. Cable gland PG16/21, marine grade 316Ti stainless steel. Temperature-resistant silicon seal. Toughened safety glass. Ballast and ignitor fitted depending on the version.

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Double emission ceiling lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 78 topled LEDs. The device body is made of aluminium 6060 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of pmma. The ingress protection degree is IP40; the total weight is of 8.52 kg. The device features protection class I and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions.

WE-EF

BOLLARD

OUTDOOR LIGHTING

IP66. IK10. Marine-grade, all-aluminium construction. 5CE superior corrosion protection including PCS hardware. Polycarbonate lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control.

MEYER

POLE LIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, highly efficient faceted rotationally symmetrical reflector, integral driver (AC/DC), CRI > 85, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 89°, luminous flux: 3572 lm, wattage: 46 W, delivered lumens 78 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,025 m², dimensions: Ø 194 mm, width 124 mm, weight 3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
