LINEALIGHT

PROJECTOR LIGHT

OUTDOOR LIGHTING

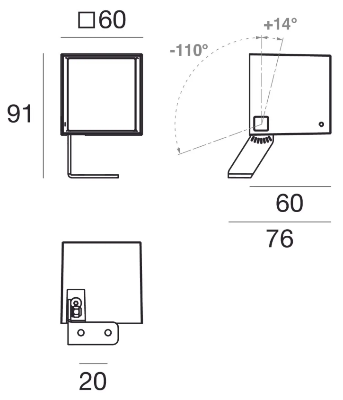

Periskop60 84234N15

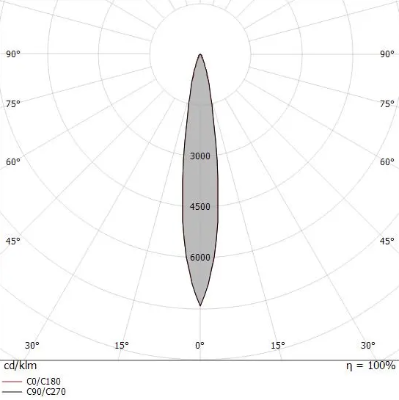

Single emission projectors for outdoor application. The natural white LED light source with a spot light distribution is composed of 1 arrayled LEDs with CCT of 4000 K and a CRI 80.The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment.The power supply cable is included and features a 1 m length.

Specification

Power

6.7W

Color Temperature

4000K

Light Source Type

LED

Lumen Output

678LM

Finishing

BLACK

IP Rating

IP66

Color Rendering

CRI 80

Driver

WIBRE

UNDERWATER LIGHT

OUTDOOR LIGHTING

Protection class IP68 – up to 3m water depth. Protection class IP69 - protection against high pressure and high jet water temperatures. Entirely made of stainless steel 316Ti 1.4571. Mounting foot adjustable through 180°. POW-LED cold white, warm white, neutral white. POW-LED blue. POW-LED RGB. Multichip POW-LED RGB. Multichip POW-LED RGB-W. Multichip POW-LED Dynamic white. Operating mode: constant current. Rotationally symmetric light distribution. Screw-type cable fastener with M16x1.5, PVDF. Constant-current power source/RGB controller external. Supplied with lamp

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.190 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 36 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.400 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 52 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.920 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions
