Suelo316_RXFJ 76047W15

Single emission uplights for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 80.The device body is made of aisi 316l steel and features a steel finish.The power supply cable is included and features a 1 m length.The device features protection class II and can be floor-mounted with an outer casing.


Specification

Power
7W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
513LM
Finishing
STAINLESS STEEL
IP Rating
IP68
Color Rendering
CRI 80
Driver

See more

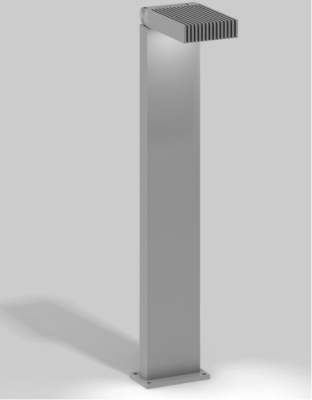

XAL
BOLLARD
OUTDOOR LIGHTING


CDN LIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING


LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.078 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions

XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with four flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 56°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 19; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;
