KOIZUMI

WALLWASHER

INDOOR LIGHTING

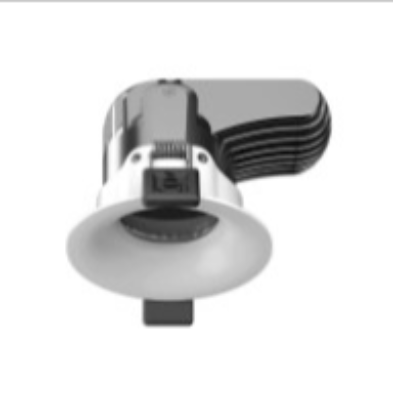

XD91622L_17W

Double asymmetric wallwasher downlight made of die cast aluminium frame, aluminium or mirror finish cone. These light distributed so as to expand on both sides effectively illuminates both sides of fixtures as well as assuring illuminance of the base with leaked light, allowing a single light to play three roles. Fewer appliances are required, keeping the ceiling layout clear. Effective in fast-fashion stores, supermarkets or libraries with tall fixtures.

Specification

Power

17W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1485LM

Finishing

ALUMINIUM

IP Rating

IP20

Color Rendering

CRI 92

Driver

ON/OFF DRIVER

BEGA

WALL LIGHT

OUTDOOR LIGHTING

Luminaire made of aluminium alloy and stainless steel. Opal glass Silicone gasket. Mounting plate with 2 fixing holes ø 4.5 mm · 40 mm spacing 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ Earth conductor connection. Lampholder E 27. Safety class I. Protection class IP 44. Protected against granular foreign bodies > 1 mm and splash water. Impact strength IK06. Protection against mechanical impacts < 1 joule r – Safety mark, c – Conformity mark.

SPARK

SUSPENDED DOWNLIGHT

INDOOR LIGHTING

Suspended mount downlight, luminaire body made of aluminium housing with white powder coated finish. Come with 1m hanging rod. Black finish and honeycomb accessory available upon request.

MEYER

FLOODLIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, 2 drilled holes Ø 7 mm, spacing 30 ‑ 35 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics.
