KOIZUMI

SURFACE LINEAR LIGHT

INDOOR LIGHTING

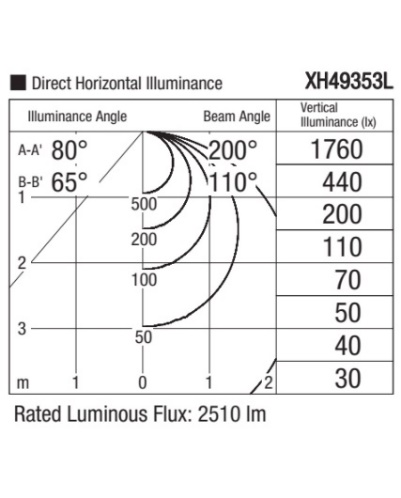

XH 49353L

DIMMING & TUNABLE Vertical mount / Wall mount linear light designed as an essential component of the architectural space in which it is used. A high quality light product with a focus on having a solid feel and continuity. Creates a unique lighting environment with various mounting methods, lengths, color temperatures, and control methods.

Specification

Power

26W/M

Color Temperature

2700K

Light Source Type

LED

Lumen Output

2510LM/M

Finishing

ALUMINIUM

IP Rating

IP20

Color Rendering

CRI 82

Driver

DIMMABLE DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.400 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

XAL

RECESSED DOWNLIGHT

INDOOR LIGHTING

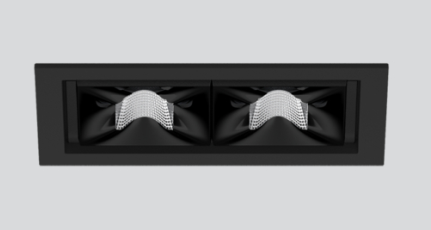

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with two medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 33°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;

LINEALIGHT

LED NEON TUBE

OUTDOOR LIGHTING

Single emission led strip for indoor or outdoor application. The super warm LED light source with a spot light distribution is composed of 1 topled LEDs with CCT of 2700 K and a CRI 85; the source luminous flux is 2185 lm, with a 115.0 lm/W nominal luminous efficacy. The device body is made of PU and features a white finish. The ingress protection degree is IP67.

LINEALIGHT

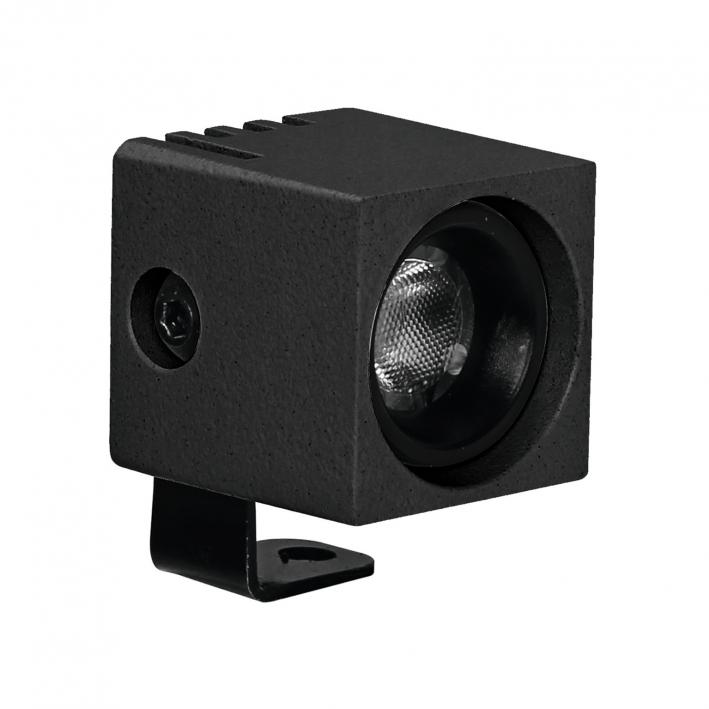

SPOTLIGHT

OUTDOOR LIGHTING

Single emission projectors for outdoor application. The super warm LED light source with a spot light distribution is composed of 1 powerled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66,IK05.
