RCL

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

DRX7-Static-White-1900m-50-Zoom- 3000K

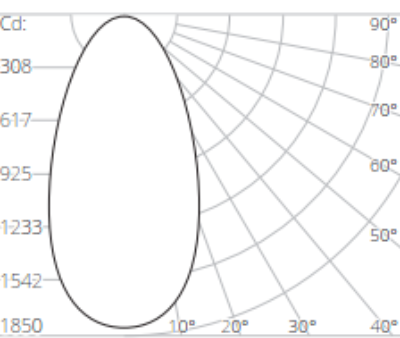

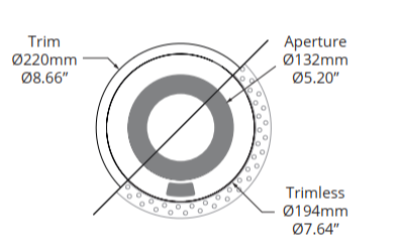

R7 3000K LED (25W for light source) standard trim recessed luminaire with 50° optic. Manufactured from LM24 aluminium and glass-filled polycarbonate, with a mild-steel mounting ring. Finished in white (RAL 9010). Voltage is 220-240V 50/60HZ. Luminaire has high-performance colour rendering of 90+ CRI. Luminaire can be rotated, with +/- 175° movement through the pan axis and •+/-35° through the tilt axis, at a resolution of less than 1° in either axis.

Specification

Power

25W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1958LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

Driver

1-10V DRIVER

XAL

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Round recessed spotlight in die-cast aluminium with recessed luminaire plane; surface black powder coated; 360° rotatable and 35° tiltable; installation without tools in mounting set due to patented ball catch system; round installation housing; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI. The ingress protection degree of protection IP20.

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

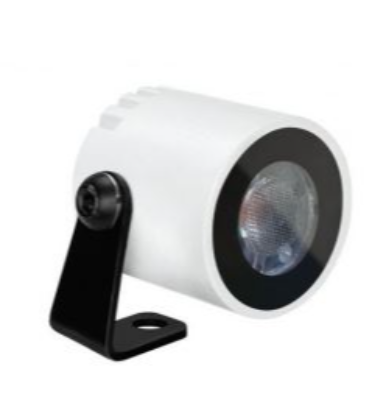

Aluminium housing adjustable downlight, wide-open shape die-cast aluminium heatsink design to enlarge the heat dissipation area, leading to a high heat dissipation efficiency and long-life on the fixture. Small cut-out diameter 55mm suitable for tiny ceiling.
