IGUZZINI

RECESSED DOWNLIGHT
INDOOR LIGHTING
EASY_QF90_B49S

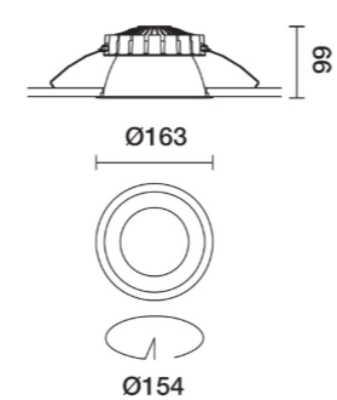

This flush mount luminaire suits false ceilings 1–25 mm thick, secured with steel springs. It features a painted die-cast aluminum body and a scratch-resistant, metallic-finish reflector for high efficiency and visual comfort. Frame versions offer UGR < 19, IP54 on the visible part, and various wiring options: On-Off, DALI, or emergency inverter. Installation space requirements are detailed in the instruction sheet.

Specification

Power
24.5W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
3010LM
Finishing
WHITE
IP Rating
IP20
Color Rendering
95
Driver
0-10V DRIVER

See more

LED LINEAR
LED NEON TUBE
OUTDOOR LIGHTING

IP67 flexible 24 V linear LED strip up to 7.5 m in length. Polyurethane encapsulation offering a premium water proof sealing, UV resistance, chemical stability against urban gazes and protection against abrasion. White lower casing for higher efficiency (better light extraction). Delivered with 200 mm IP67 mini connectors on both ends. Constant Voltage LED strip with 62.5 mm and a small LED pitch of 8.93 mm the first choice for outdoor applications with a direct top view or indirect lighting with low construction depths – with perfectly homogeneous light. Assembled using state of the art automated Reel to Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.

CDN LIGHTING
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Fixed and adjustable in one; When tilting at any angle, patented spherical shielding design helps prevent light leak and gap. Special moving gear tilt design provides stabilized torque for accurate tilt with sound and force feedback when rotating. Besides, Bach 5s series have pull ring equipped for easy maintenance and internal angle mark for accurate aiming. Professional optics, precise and round light spot.

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 9 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98672(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
LUCENT
ADJUSTABLE DOWNLIGHT
OUTDOOR LIGHTING
Focus60 accent downlight with black baffle for glare control and minimal ceiling trim. This product accommodates LOW output LED50 ONE GEN2 modules.
