UNILAMP

UNDERWATER LIGHT

OUTDOOR LIGHTING

ATOM 5981-3-2-989-91

ATOM is a ground recess indicator light and is also suitable for under water light application. ATOM has been designed and manufactured at highest attribute. Utilizing CNC lathed stainless steel body presented exceptional aesthetic as well as sleek tough feeling. LED chips and lenses are from world renowned manufacturers. GFR polymer recess kit allows it to be installed in most extreme environment. Ensuring integrity of manufacture ATOM is supplied with a factory fitted pre-wide cable for ease of installation. The Anti-Humidity kit eliminate condensation inside the housing and prolong the life time of the luminaire. An optional IP68 connectors is recommended as an accessory for trouble free installation.

Specification

Power

3.9W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

160LM

Finishing

STAINLESS STEEEL

IP Rating

IP68

Color Rendering

CRI >80

Driver

ON/OFF, 1-10V, DALI

LINEALIGHT

INGROUND UPLIGHT

OUTDOOR LIGHTING

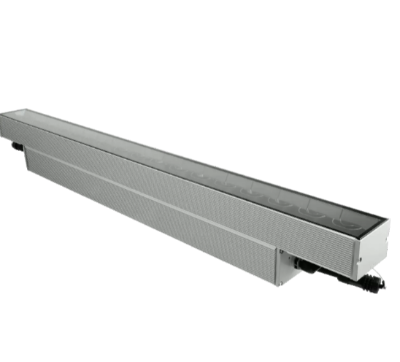

Single emission uplights for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP68,IK10.

WIBRE

UNDERWATER LIGHT

OUTDOOR LIGHTING

Protection class IP68 – up to 3m water depth. Entirely made of stainless steel 316Ti 1.4571. With 17 mm (4.0301) or 32 mm (4.0311) thick cover on the basis of a PAR56 light source. (4.0301) for concrete pools in conjunction with built-in pot 4.0300. (4.0311) for plastic or metal pools with pressure flange in conjunction with built-in pot 4.0312. Light source can be changed without draining the water. Supplied with light source and underwater cable (3 m) already connected (2 x 6 qmm)

SIMES

FOOT LIGHT

OUTDOOR LIGHTING

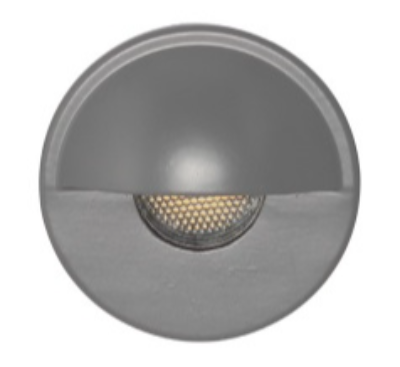

Ghost for cladding can also be easily installed into plasterboard panels for indoor or outdoor. The fixture housing is fixed to the back wall that will later be covered with plasterboard panels and subsequently rendered over. The fixtures aperture can also be plastered so to integrate it completely. Ghost for cladding has also been engineered to take many different types of material finish ( mosaic finish, ceramic tiles, stone finish ) that can be contained within the thickness of the protruding
