Product Detail | Bloxlimited

FORMALIGHTING

TRACKLIGHT

INDOOR LIGHTING

MOTO-ZERO COMPASSO ZOOM 80_ M669BC36

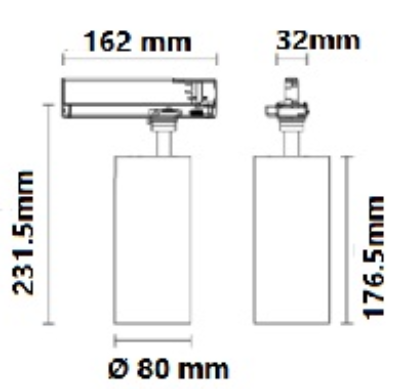

Motorized track mounted spotlight with light head and mounting arm in cast aluminium. Moto-Zero Compasso Zoom is available in 3 diameters: 40mm. 68mm and 80mm. The integrated track adapter with built-in driver is compatible with 3 phase eurotype track. Two DC motors drive the movements of the fixtures, tilting them vertically up to 90° and rotating horizontally 350° a third motor controls a special lens, which allows the user to shape the light beam from narrow to wide diffuse.

Specification

Power

20W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1566LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

CASAMBI

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission ceiling lights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of ot58 brass and features a embossed white ral 9003 finish, processed by means of powder coating. The ingress protection degree is IP52; the total weight is of 0.116 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

BEGA

BOLLARD

OUTDOOR LIGHTING

Garden and pathway luminaires with downward-directed light for effective lighting in private gardens. Luminaire for the uniform and glare-free illumination of ground surfaces. Luminaire made of aluminium profile, aluminium alloy, aluminium and stainless steel. IP65,IK09.

FORMALIGHTING

RECESSED DOWNLIGHT

INDOOR LIGHTING

Square recessed motorized luminaire with retractable light head. Mounting trim and light head are made of cast aluminium, recessed light housing made of painted metal. Moto-Palla In&Out is available in 3 different light head diameters: 66mm, 100mm and 130mm. The luminaire includes brackets for trim installation on ceiling thickness max. 25 mm or trimless installation on ceiling thickness max. 30 mm. Two remote controlled DC motors drive the movements of the fixtures. The fixtures are rotatable horizontally 350° and, tiltable vertically in two directions (0°-10° In, 0°-90° Out). The movements of the fixture, as well as the intensity and the colour tuning of the light, are controlled via CASAMBI™ application.
