LBHC-RE-FR-F-B-9030-RF02-DS-I-10C-B-2-ST-1504

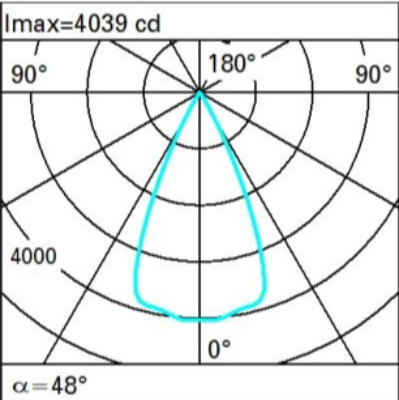

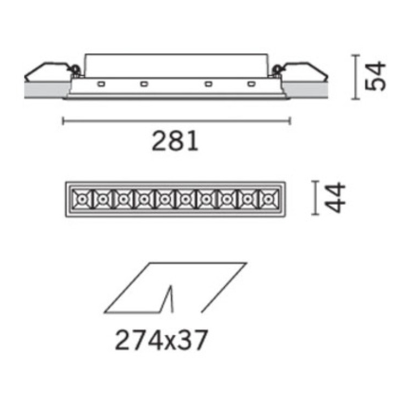

The Laser Blade is a compact, high-efficiency downlight designed for visual comfort and architectural precision. With miniaturized optics and a sleek 281 mm profile, it delivers 1840 lumens at 93.9 lm/W, all while maintaining a low glare (LOR 85) and CRI of 90. Its pinpoint beam angle of 50° provides seamless circular light, ideal for refined, invisible lighting effects. Weighing just 0.6 kg, it combines advanced technology, flexible design, and award-winning innovation in a discreet IP20-rated

Specification

Power
17W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1840LM
Finishing
GREY
IP Rating
IP20
Color Rendering
CRI 90
Driver
DALI DRIVER

See more

WE-EF
INGROUND UPLIGHT
OUTDOOR LIGHTING

unable White. IP69, Class I. IK08. Marine-grade all aluminium construction. Anodized aluminium extrusion. PCS hardware. Silicone rubber gasket. Safety glass lens. Luminaire can be driven over at low speed, without accelerating or turning, by vehicles with air-filled tyres, at a weight up to 5 tonnes per wheel. Max. static load, 3 tonnes (according to DIN EN 60598-2-13). Factory-sealed termination chamber complete with cable gland and 0.5 m of flexible cable. PMMA LED lens. Factory installed LED circuit board with Tunable White Technology. LED boards can be easily removed for upgrading. Luminaire is factory sealed and does not need to be opened during installation. Integral electronic converter with DALI interface in thermally-separated compartment. Optional Tunable White 2200 - 6000 K version available. To be specified at time of ordering. Pre-installation blockout is recommended for mounting, available on request.

PHOS
RECESSED DOWNLIGHT
OUTDOOR LIGHTING
The Soft fixed is a recessed, fixed downlight with a Ø54mm beautifully sculpted, trumpet-shaped bezel. Reduced glare design with unique, elegant small aperture. Flawless finishes available on all components.
LINEALIGHT
PENDANT
INDOOR LIGHTING
Single emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 294 stripled LEDs. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 2.3 kg. The power supply cable is included and features a 4.85 m length. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
PROJECTOR LIGHT
OUTDOOR LIGHTING

Single emission projectors for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of aisi 316 steel and features a steel finish, processed by means of electropolishing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68,IK10.
