IGUZZINI

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

LBHC-RE-FR-F-B-9030-RF02-DS-I-05C-B-2-ST-1504

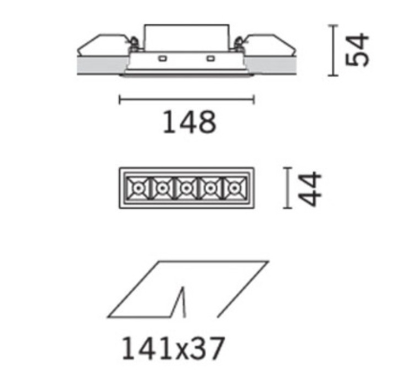

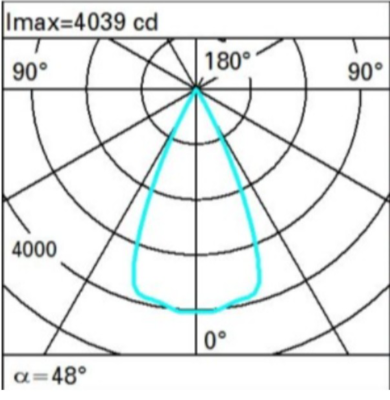

The Laser Blade is a compact, high-efficiency downlight designed for visual comfort and architectural precision. With miniaturized optics and a sleek 148 mm profile, it delivers 920 lumens at 79.3 lm/W, all while maintaining a low glare (LOR 85) and CRI of 90. Its pinpoint beam angle of 50° provides seamless circular light, ideal for refined, invisible lighting effects. Weighing just 0.34 kg, it combines advanced technology, flexible design, and award-winning innovation in a discreet IP20-rated

Specification

Power

8.6W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

920LM

Finishing

GREY

IP Rating

IP20

Color Rendering

CRI 90

Driver

0-10V DRIVER

IGUZZINI

WALLWASHER

INDOOR LIGHTING

3-compartment recessed luminaire with wall washer fixed optic for warm white LED 2700 K with high colour rendering index. Passive cooling system. Luminaire body with die-cast radiant aluminium surface; version with perimeter stop frame. Special optical systems for defined light distribution on the wall with no shadow areas. The position next to the asymmetrical units ensures a considerable reduction in direct glare, without compromising the quality of light emitted. Reflectors - flow recuperator

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with six wallwasher light elements; asymmetrical light distribution with precise radiation characteristic; high quality reflector with micro-faceted, aluminumvaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

PROLICHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

BIONIQ has been developed for lighting designers and architects who demand the highest standards in technology, design and precision. State‑of‑the‑art LED technology combined with lens‑based optics delivers exceptionally controlled, high‑quality light. High luminous efficacy, beam angles ranging from Super Spot to Very Wide Flood, 30° tiltability and 350° rotation provide maximum creative freedom. IP65 as standard, tool‑free exchange of lenses and accessories and excellent glare control.

LINEALIGHT

SURFACE MOUNTED DOWNLIGHT

OUTDOOR LIGHTING

Single emission ceiling downlights for outdoor application. The super warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 925 lm, with a 142.3 lm/W nominal luminous efficacy.
