FORMALIGHTING

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered high effiency safety glass, anti‑reflective coating from 1 side, silicon gasket, with 3 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 7 mm, spacing 30 mm, 1 centre hole Ø 8.5 mm, tilt range: 140°, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector with matt finish, integral driver (AC/DC), 80, max 2 SDCM, service life L80/B20 > 50.000 h, Beam angle (fwhm): 15°, luminous flux: 1211 lm, wattage: 19 W, delivered lumens 58 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,01 m², dimensions: Ø 95 mm, width 165 mm, weight 1.5 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

The Traxon Media Pixel Ribbon DMX family are flexible LED strips which can be controlled directly using DMX 512. The Media Pixel Ribbon provides flexibility to fit on any curved surface. Featuring a 16.7mm LED Pitch with a 100mm Pixel pitch. The Media Pixel Ribbon can be customized for number of pixels, ribbon length, and mounting options. This product is intended for use in high-quality colored light applications.IP20.

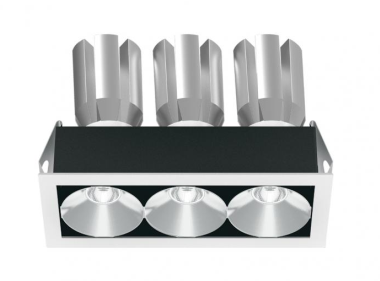

A series of premium recessed downlights available in various sizes, shapes, and finishing. Paired with ELR’s highly configurable LED modules, the Vasari downlight series offers a high degree of flexibility, aesthetics and functionally for the most discerning of applications.

It is an ideal solution for straight ceiling cove lighting, offering sleek, efficient, and uniform illumination with high quality Japanese LED package that enhances both aesthetics and functionality. Its high brightness of up to 20W/m and 2000 lumens delivers energy-efficient performance. Perfect for green building commercial spaces like offices and lobbies or hospitality venues such as hotels and restaurants, the LFY-I highlights architectural lines with precision. Customizable and cuttable, it
