XAL

Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Two cable entries. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering. Luminaire can be mounted for up or down lighting.

Zebra Series: Application environment : Outdoor ·Working life : ≥100,000 hours ·Cabinet material : Aluminum alloy ·Brightness : 1000 ~ 5000cd / ㎡ ·Installation method : Hoisting / Fixing ·Certification : CE / CCC / FCC

Can be customized size and shaped.

Pixel Pitch (H/V): 20mm, Pixel Configuration （SIDE):1 x SMD2727, Brightness（CD/m²):1000 ~ 7000, Pixel Density（dot/m²):2500, Transparency: 60%, Cabinet Resolution（dot): 50x50, Module Size（mm): 1000 x 28, Module Resolution: 50 x 2 dot, Cabinet Weight: ≤16Kg / m², Ingress Protection (Front/Back): IP65, Viewing Angle (H/V), 120°/ 120°, Viewing Distance:>20m, Gray Scale: 16 bits, Avg.Power Consumption（W/m²): 600, Refresh Rate（Hz): 3840, Input Voltage: AC100 ~ 240V , 50 / 60 Hz, Drive Mode: Static, Control Mode:  Synchronous display with control PC by DVI, Support Input: Composite , S-Vido , Component , VGA , DVI , HDMI , HD_SDI, Operating Temperature:  -40°C ~ 50°C（work), - 40°C ~ 60°C（store), Operating Humidity: 35% ~ 85%（work), 10% ~ 90% （store）

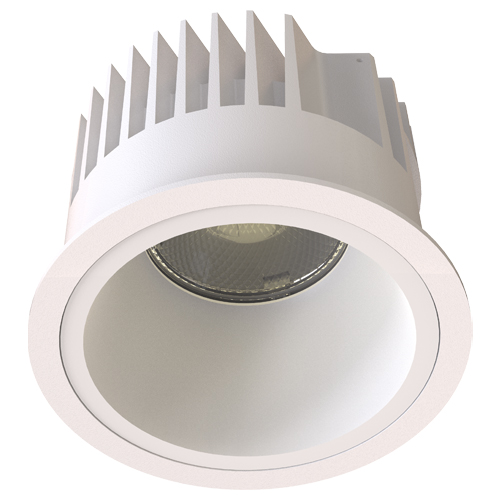

Single emission downlights for indoor application. The warm white LED light source is composed of 3 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 537 lm, with a 89.5 lm/W nominal luminous efficacy. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.215 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 6 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 113 x 42 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Die cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Marine grade stainless steel AISI 316L front trim 2 mm thick. Toughened glass diffuser 12mm thick for COMPACT 200, 12mm thick for COMPACT 275, 15mm thick for COMPACT 360. Luminaire hard wired with single neoprene cable with cable gland. Stainless steel screws. Recessing box in polypropylene arranged for cable entries in all 4 sides. Silicone gaskets.
