BEGA

Often used in entryways to select Scene 1 and Off.• Large, rounded buttons are easy to use.• Backlit buttons with optional engraving make it easy tofind and operate the Wallstation in low light conditions.• Optional button engraving is angled up to the eye foreasy reading.• The LEDs next to each button are used duringprogramming and provide feedback when the buttonsare pressed.• Receives up to two contact closure inputs via aconnector on the back of the Wallstation.

Aquila is a cylindrical fitting with strong form and excellent lighting performance. The construction is an extruded aluminium housing with a flush-fit sand blasted glass lens. For an even distribution across the glass, the led is controlled by a narrow beam LEDil optic. Aquila is fully customisable in size, and available in a full range of colour temperatures, finishes, power feed types and lumen outputs.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 25°, luminous flux: 2954 lm, wattage: 37 W, delivered lumens 80 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,022 m², dimensions (L×H×W): 152 × 120 × 152 mm, weight 2.4 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

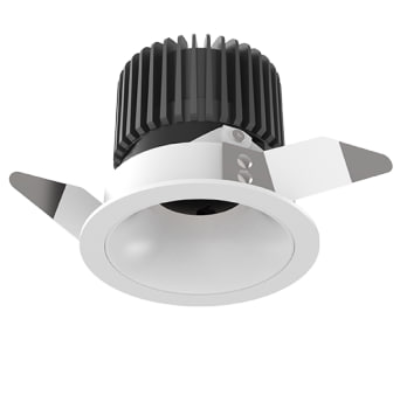

Eclectic Ø70. Adjustable Downlight (35º tilt, 360º rotation). “Cone” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 47º cut-off angle. IP20 water tightness (for IP54, please ask the dedicated accessory). Alternative options for lenses, orientation modules and style façades are available as spare parts. The ingress protection degree is IP20.
