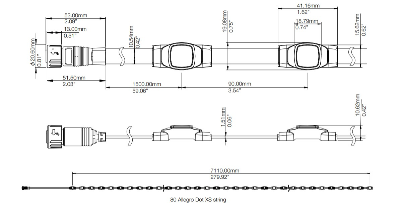

Allegro Dot XS DW

Allegro Dot XS is the newest and smallest member of the intelligent Allegro Dot family which enables longer chains of illuminated Dots. The Allegro Dot XS is ideal for outdoor media applications, where it can be integrated seamlessly into the facade, or it can be installed to float in the air with our highly transparent mounting options. Each system is driven by the PXL Distributor Pro 8 (PDP8) which integrates power and data into one unit, reducing the space required for installation components

Specification

Power
0.5W
Color Temperature
Dynamic White 2700K – 6500K
Light Source Type
LED
Lumen Output
26LM
Finishing
WHITE
IP Rating
IP66
Color Rendering
CRI >80
Driver
DMX 512
