CORE 7322-5-3-902-03

Characterized by clean and clean-cut lines CORE is a family of square wall light, ceiling light, bollard and pole lights. CORE is available in two sizes and equipped with COB LED in three color temperatures and exceptional color consistency. The computer-aided-design of the parabolic reflector provides efficient light emission and distribution. The housing is dust and water protected through the extensive engineering design and testing. CORE is recommended to illuminate column, facades, walkways and vairous architectural design works. The pole lights give a great level of downward light with symmetric or asymmetric light distributions.

Specification

Power
40W
Color Temperature
3000K
Light Source Type
LED
Lumen Output

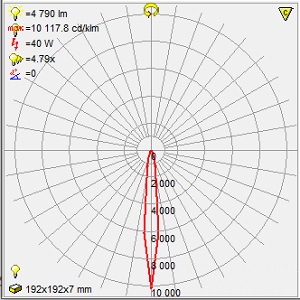

4790LM
Finishing
DARK GREY
IP Rating
IP65
Color Rendering
CRI >80
Driver
ON/OFF DRIVER

See more

SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Recessed adjustable square downlight luminaire body made of aluminium housing with white powder coated trim finish. Black finish and honeycomb accessory available upon request.

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.078 kg. The power supply driver is notprovided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard) with an outer casing, code 99847 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions
SPARK
ZOOMABLE TRACKLIGHT
INDOOR LIGHTING

Track Adjustable Zoomable Spotlight luminaire body made of aluminium housing with white powder coated finish. Zoomable beam from 10° - 60° degree. White finish available upon request.

SIMES
FOOT LIGHT
OUTDOOR LIGHTING

Inground walk over fitting. Recessing depth 125 mm. IP rating IP67. Body made of AISI 316L monoblock stainless steel. Absence of screws (the luminaire is fixed to the recessing box with OR rings). Recessing box in polypropylene. Mechanical resistance of diffusor IK 08 Maximum load capacity 500 Kg. Luminaire hard wired with H05RN-F neoprene cable 5m with cable gland. Isolation: CLASS III . Available colours: Stainless steel (cod.19). Weight: 1.1678 Kg Glow Wire test: 750°C.
