SIMES

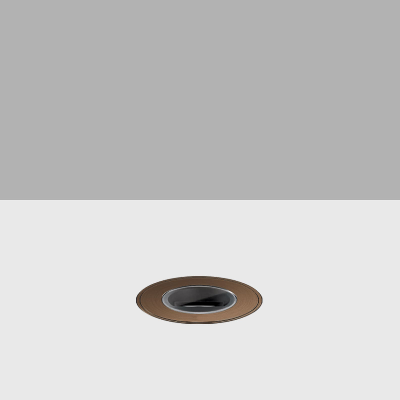

INGROUND UPLIGHT

OUTDOOR LIGHTING

S.4937.19

Die-cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Marine grade stainless steel AISI 316L 3 mm thick for RING or aluminium front trim for FLAT. Toughened glass diffuser 12mm thick for MICRORING, 15mm thick for MINIRING, 19mm thick for RING/MEGARING, 10mm thick for MICROFLAT, 12mm thick for MINIFLAT, 15mm thick for FLAT/MEGAFLAT. Stainless steel screws. Luminaire hard wired with single neoprene cable with cable gland. Fast connector IP68 included. Recessing box in polypropylene. Silicone gaskets.

Specification

Power

LED 70 W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

6500 lm

Finishing

Black

IP Rating

IP68

Color Rendering

CRI 90

Driver

On/Off

LED LINEAR

WALLWASHER

OUTDOOR LIGHTING

Compact luminaire with a clear encapsulation and reflectors for wall washing in outdoor areas. Alanod reflector technology for an excellent color mixing and homogeneous wall wash effect. Polyurethane is utilized in Xoolum R Wall Wash to make it more resistant to impact from salt water UV-light and solvents. Compact design and simple surface mounting enabling a discrete installation in the ceiling.

LINEALIGHT

UNDERWATER LIGHT

OUTDOOR LIGHTING

Single emission submerged for outdoor application. The warm white LED light source with a elliptic medium flood light distribution is composed of 1 powerled LEDs. The luminaire body is made of stainless steel and features a steel finish; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68,IK10.

LINEALIGHT

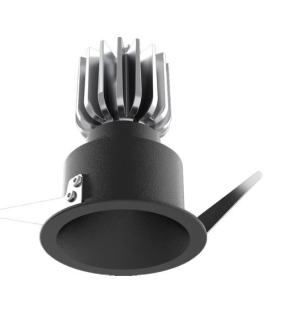

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.860 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 127 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
