SIMES

INGROUND UPLIGHT

OUTDOOR LIGHTING

S.5159.19

Die cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Marine grade stainless steel AISI 316L front trim 2 mm thick. Toughened glass diffuser 12mm thick for COMPACT 200, 12mm thick for COMPACT 275, 15mm thick for COMPACT 360. Luminaire hard wired with single neoprene cable with cable gland. Stainless steel screws. Recessing box in polypropylene arranged for cable entries in all 4 sides. Silicone gaskets.

Specification

Power

LED 70 W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

6500 lm

Finishing

Sliver

IP Rating

IP67

Color Rendering

CRI 90

Driver

On/Off

SPARK

RECESSED LINEAR LIGHT

INDOOR LIGHTING

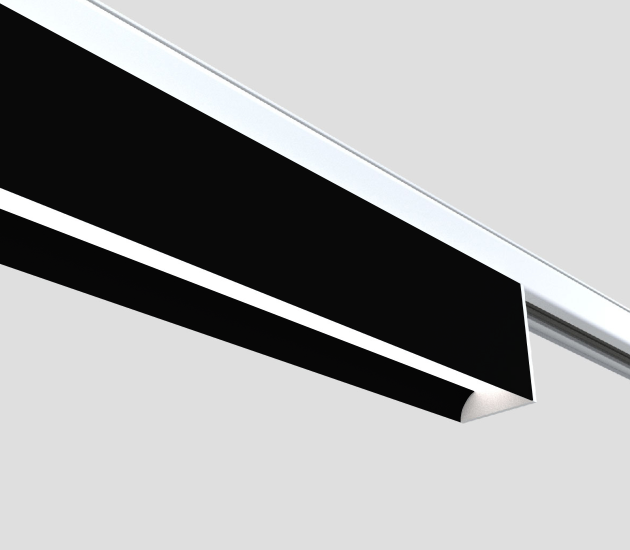

Recessed linear T8 luminaire come with mirror reflector.

ILIGHT

CONTROL SYSTEM

This SCMH1200 is a DINrail mount 12 channel digital dimming controller. Each channel may be configured to provide Broadcast DALI, DSI or 1-10V control. With iLight network connectivity, it has the capability of being linked with a virtually limitless number of other iLight products to build up to any size of system. 12 channel device. Broadcast DALI, DSI or 1-10V control. 128 scene memory. Connects to the iLight network via screw terminals. Fail to full safety feature. iLight iCANnetTM network inputs. DALI in (12 address DALI end device). Future proof with FLASH memory.
