ELR

RECESSED DOWNLIGHT
INDOOR LIGHTING
AQUILA-3RG.NT.RD.FX.WH.CR.25DEGREE


Specification

Power
10W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
930LM
Finishing
ALUMINUM
IP Rating
IP40
Color Rendering
CRI95
Driver

See more

IGUZZINI
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

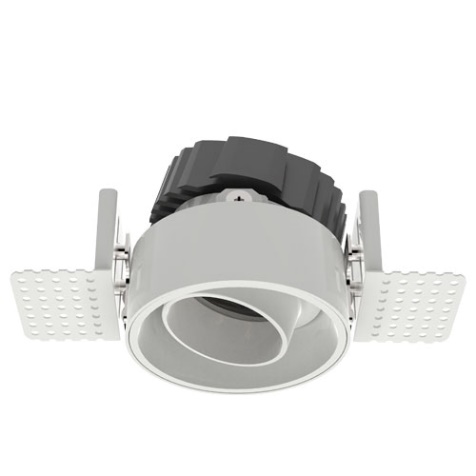

Round recessed luminaire with contact frame. Adjustable version that tilts by a maximum of 30°. The main swivel body is made of die-cast aluminium with a radiant surface that guarantees optimum heat dissipation. High color rendering index 3,000K LED. Power unit available with a separate code no. Direct current ballasts are available with a separate code no.: ON-OFF / 1-10V dimmable / DALI dimmable

IGUZZINI
WALL LIGHT
OUTDOOR LIGHTING

Outdoor wall-mounted luminaire come with wide flood optic. The luminaire consists of an optical assembly upper cap and base for fixing to the wall. The optical assembly upper cap and base are made of die-cast aluminium alloy coated with liquid acrylic paint in high level of resistance to weather and UV rays. Transparent tempered sodium, calcium safety glass with customised grey serigraphy 4 mm thick joined to the optical assembly with silicone. The adjustable fixing bracket is made of painted aluminium. It has a single stainless steel M14x1 cable gland and FEP outlet cables L=150mm, electronic circuit with warm white LED and highly reflective thermoplastic internal reflector. IP66, IK07

LINEALIGHT
SURFACE TRACKLIGHT
INDOOR LIGHTING
Single emission projectors for indoor application. The warm white LED light source with a adjustable focus light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.612 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.128 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 56 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
