PIVOT 3.0_CP3000100150KH-2

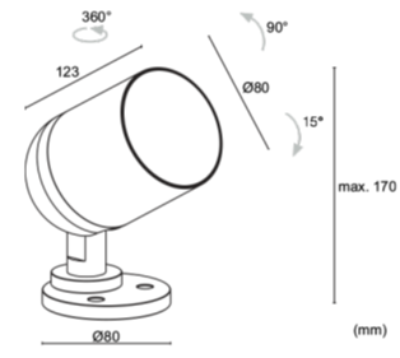

Surface mounted (ceiling, wall, ground, spike). 25W, 24Vdc, 1890 lm source / 1575 lm delivered (3000K, CRI >90). 1 COB LED, 55,000h L70 B10. Optics: 12°–66° adjustable zoom (magnet). Body: CNC-machined Anticorodal aluminium, anthracite finish, tempered extra-clear glass screen. IP66, IK08, -20°C to +50°C, Class III. Size Ø80×123 mm, 1.1 kg. Features: Casambi control, IPS protection, glow wire 960°C. Accessories: snoots, honeycomb louvre, spike, magnet.

Specification

Power
25W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1890LM
Finishing
ANTHRACITE
IP Rating
IP66
Color Rendering
>90
Driver
DMX 512

See more

FORMALIGHTING
TRACKLIGHT
INDOOR LIGHTING

Advanced, multi-functional LED track mounted projector, tiltable vertically 0°-90° and rotatable horizontally 350°. With built-in bidirectional zooming lens with sharpness adjustability, and lens rotation. Adjustable shutters to re-frame the beam to the desired size and shape (circle, square/rectangle, or irregular four-sided shapes). Compatible with Gobo insertion for logo. High-precision optics for sharp outlines and high degree of lighting uniformity.

SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Recessed adjustable downlight come with snoot in the center. Available 3 different diameter sizes Ø40, Ø50 and Ø60MM.

SIMES
INGROUND UPLIGHT
OUTDOOR LIGHTING
Die-cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Marine grade stainless steel AISI 316L 3 mm thick for RING or aluminium front trim for FLAT. Toughened glass diffuser 12mm thick for MICRORING, 15mm thick for MINIRING, 19mm thick for RING/MEGARING, 10mm thick for MICROFLAT, 12mm thick for MINIFLAT, 15mm thick for FLAT/MEGAFLAT. Stainless steel screws. Luminaire hard wired with single neoprene cable with cable gland. Fast connector IP68 included. Recessing box in polypropylene. Silicone gaskets.
LINEALIGHT
SURFACE TRACKLIGHT
INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
