Product Detail | Bloxlimited

IGUZZINI

LINEAR DOWNLIGHT

INDOOR LIGHTING

LBXS-RE-FR-F-B-9027-RF01-EX-F-03C-L-3-ST-V004

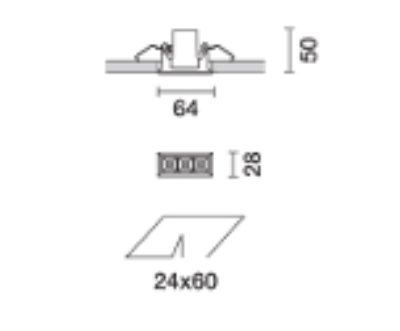

Miniaturized lighting fixture Laser Blade XS Linear optical element with 3 cells (3 LEDs) Recessed lighting fixture with a radiant surface in die-cast zama, complete with springs for installation. Frame version with a perimeter trim. LED Single Chip High Power 2700K LED Color Rendering Index -CRI90- High-definition Opti Beam reflector in metallized thermoplastic material. FLOOD optics. Black polycarbonate raster with glossy surface (not painted). Product does not include a driver; it must be ord

Specification

Power

5.2

Color Temperature

2700K

Light Source Type

Ceiling Recessed

Lumen Output

500

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98671 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

FORMALIGHTING

SPOTLIGHT

OUTDOOR LIGHTING

Recessed/surface luminaire with light housing in aluminium extrusion inclusive of with toughened safety glass, weatherproof durable silicone gasket and external screws made of stainless steel. Ring and back plug cover in cast aluminium. Base and bracket in cast aluminium. Front cover designed to avoid accumulation of dust and water. Ceiling installation via clamping wings for ceiling thickness 1 to max.30mm. Surface version tiltable vertically 0-140° and rotable horizontally 350°, inclusive of mechanical locking system to ensure aiming stability.

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Recessed adjustable downlight come with snoot and luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 0.120 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 6.5 W. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 48 mm diameter hole (in plasterboard) with an outer casing, code 89374(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
