Products

IGUZZINI

WALLWASHER
INDOOR LIGHTING
P369.01

Round recessed luminaire with contact frame. Fixed Wall Washer version: the optic system is designed to aim the light flow on a vertical surface with no shadow zones and a precise outline. The main body is made of die-cast aluminium with a radiant surface that guarantees optimum heat dissipation. Structure with die-cast aluminium external contact frame with a single white finish. The optic unit includes two shaped metallized thermoplastic reflectors, a PMMA refractor/safety screen and a plastic

Specification

Power
10W
Color Temperature
2700K
Light Source Type
Ceiling Recessed
Lumen Output
694lm
Finishing
WHITE
IP Rating
IP20
Color Rendering
CRI 90
Driver
1-10V DRIVER

See more

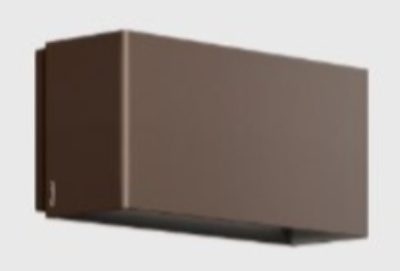

LIGHTFORMS
WALL LIGHT
INDOOR LIGHTING
Noventa 3.5 is a suspended, wall/surface or recessed luminaire that creates an architectural 90 degree corner. For two-sided illumination around a perimeter, use a wall/surface model. Hang a suspended “L” model for illuminating a wall surface and to provide ambient downlight. Hang a suspended “diamond” model to provide a wide swath of direct ambient downlight. Contact factory for recessed options.
LUCI
LED LIGHT BAR
INDOOR LIGHTING
Our next FLEX standard with preferable price Renewed to High CRI LED package, >Ra90 .High-energy efficacy achieving up to 92.4lm/W 3 steps MacAdam ellipse LED package. 5 types of wattage and lumen output (18.2W, 12.1W, 9.5W, 6.5W, 4.5W per meter) 3 types of LED pitch(15mm, 20mm, 30mm). Customized length available up to 5m per roll.
MEYER
PROJECTOR LIGHT
OUTDOOR LIGHTING

Housing made of extruded aluminum and corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 9 mm, spacing 70 mm, 1 centre hole Ø 22 mm, tilt range: 105°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), 80, service life L70/B > 50.000 h, Beam angle (fwhm): 14°, luminous flux: 1544 lm, wattage: 55 W, delivered lumens 28 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,085 m², dimensions: Ø 240 mm, width 425 mm, weight 8.1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

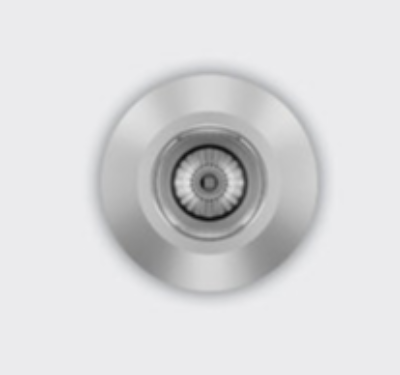

PROLICHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

The recessed spot OIKO from the familiy OIKO consists of aluminum-die-cast. The article can be powder coated in 25 colours. Stated photometric values correspond to operation by 700 mA; a suitable ballast needs to be sourced separately and is not scope of delivery. Dimming (# 22345) depends on the used ballast and may vary. The spot with direct illumination corresponds to protection class SK3 at IP20. ZERO LIGHT LEAKAGE technology guarantees trouble-free use in acoustic ceilings.
