XAL

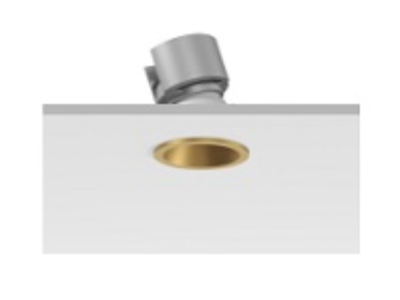

Extension of Tini range with the recessed Nano Tini i, designed for shelves and niches with a minimum thickness of 15 mm.

The very small size, the elegant finishes and the three optics (20°, 30°, 50°) make it ideal for the setting up of display and showcases for jewellers or museums.

Nano Tini i exploits the lighting potential of innovative nano lenses designed by DGA. Three optics available. Minimum dimensions. DGA proprietary lenses

Shielded bollard with rotationally symmetrical, broad spread light distribution. For the illumination of squares, access roads and entry areas. A robust and distinctive luminaire with impressive light graphic and high illuminance on the floor space. The luminaire consists of aluminium profiles, cast aluminium and stainless steel.IP65,IK07.

Single emission submerged for outdoor application. The natural white LED light source with a flood light distribution is composed of 3 powerledN LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 1640 lm, with a 117.1 lm/W nominal luminous efficacy. The device body is made of stainless steel and features a steel finish; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68,IK10.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 2 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M16, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 4°, luminous flux: 503 lm, wattage: 10 W, delivered lumens 50 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,012 m², dimensions: Ø 100 mm, width 80 mm, weight 1.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
