XAL

SUSPENDED PENDANT LIGHT
INDOOR LIGHTING

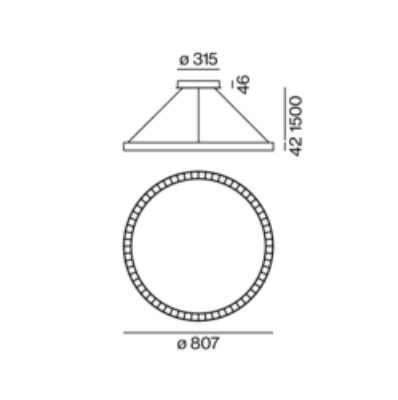

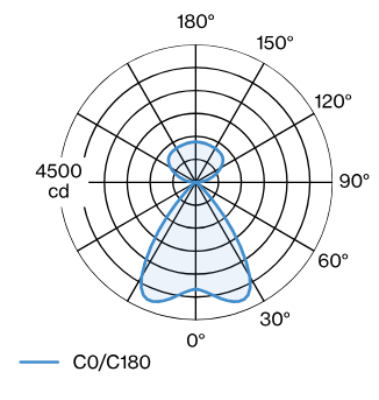

BETO CIRCLE 800 DIRECT-INDIRECT_074-7443038R

Ring-shaped light fitting in rolled and seamlessly welded extruded aluminium profile; extremely slim design (only 42 x 42 mm); surface jet black powder coated; suspended luminaire with 1500mm cable suspension (canopy central); with integrated toolless suspension height adjustment on the luminaire; incl. transparent feed; extruded profile for improved thermal management;

Specification

Power
87W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
11,200LM
Finishing
BLACK TRIM / CHROME REFLECTOR
IP Rating
IP20
Color Rendering
CRI 90
Driver
DALI DRIVER

See more

XAL
SUSPENDED LINEAR LIGHT
INDOOR LIGHTING

Luminaire housing from extruded aluminium profi le, angular design; direct / indirect light distribution; no visible screws; designed for continuous lighting systems; surface powder coated; pendant fi tting with cable suspension; with integrated tool-less suspension height adjustment; spring clip attachment to the luminaire. Length 1756 mm | width 60 mm | height 80 mm.

LINEALIGHT
LED NEON TUBE
OUTDOOR LIGHTING

Single emission led strip for outdoor application. The warm white LED light source with a diffused light distribution is composed of 112 topled LEDs with CCT of 3000 K and a CRI >90; the source luminous flux is 530 lm, with a 106.0 lm/W nominal luminous efficacy. The device body is made of technopolymer and features a white finish; the diffuser is made of pu. The ingress protection degree is IP67; the total weight is of 0.103 kg.

LINEALIGHT
PENDANT
INDOOR LIGHTING
Single emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 672 topled LEDs. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 7 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 5 m length. The device features protection class III and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
PLATEK
FLOODLIGHT
OUTDOOR LIGHTING

Surface Floodlight in die-cast body aluminium alloy with very low copper content. The product is painted continuous two step paint process (epoxy-based primer + polyester base color finisg) which allows to generate a single thick protective coating which generates aprotective barrier against atmospheric agents and UV rays. IK07
