XAL

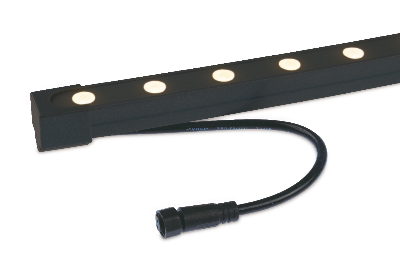

24 V, IP67 protected and IK10 certified, linear LED luminaire for indoor and outdoor in-ground installation. Suitable for installation into roads and parking lots according to EN 60598-2-13. To be walked on and traversed by vehicles with air filled tires (including trucks used for delivery). Polyurethane encapsulation offering a premium water proof sealing (values), UV resistance (no coloration or increase of absorption) chemical stability against urban gazes and protection against abrasion. Stainless Steel V4A housing delivered with male/female IP67 connectors. Available either with an opal top layer or transluscent with an internal 10° and 30° lenses for wall grazing. Light source assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.

Recessed for outdoor applications (not suitable for use in immersion in swimming pools or fountains); walkover; recessed (ceiling, wall, floor); Power consumption: max 2W; Power supply: max 500mA; Lumen output at source: 195 lm (3000K, 500mA); Delivered lumen output: 127 lm (3000K, 500mA, 21°);

The luminaire high light transmittance, high purity silica gel material, the ingress protection degree is IP65. Unique optical light distribution structure design, 360° light output uniformly without shadows. Skin-friendly surface treatment, comfortable touch, good flexibility, and simple shape. Product application for office lighting, decorative lighting, artistic lighting, modeling contrast.

Single emission pendant luminaires for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs.The luminaire body is made of aluminium 6060 and features a 5g 9005 black finish, processed by means of powder coating; the diffuser is made of pmma. The ingress protection degree is IP40.
