XAL

SUSPENDED LINEAR LIGHT
INDOOR LIGHTING
MINO 40 HIGH LUMEN_042-1222038H

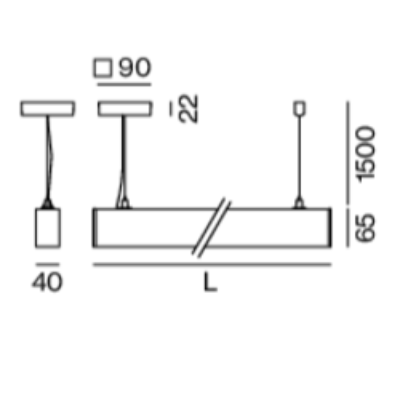

Luminaire housing made of extruded aluminium profile; light tight final end caps made of aluminium; no visible screws; angular design; surface jet black powder coated; suspended luminaire with 1500mm cable suspension; height adjustment without tools; incl. feed (black); luminaire profile can be pre-mounted; remaining lamp components mounted without tools; LED light inset consisting of highly reflective lacquered aluminium for improved thermal management.

Specification

Power
18.5W/M
Color Temperature
3000K
Light Source Type
LED
Lumen Output
2260LM/M
Finishing
BLACK COLOR
IP Rating
IP20
Color Rendering
CRI 90
Driver
DALI DRIVER

See more

LINEALIGHT
WALL LIGHT
OUTDOOR LIGHTING
Double emission wall lights for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 2 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 0.83 kg. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
LIGHTFORMS
WALL LIGHT
INDOOR LIGHTING
Lightplane 2.5 is a compact and streamlined luminaire that provides direct, indirect or directindirect illumination from a suspended, wall or surface mounted channel. The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White. A Low UGR option is available with a prismatic lens is also available.
LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a narrow spot light distribution is composed of 9 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 5.5 kg. The total absorbed power is 51 W. The power supply cable is included and features a 0.17 m length. The device features protection class I and can be floor-mounted with an outer casing, code 99771 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
SPARK
SUSPENDED PENDANT LIGHT
INDOOR LIGHTING

Suspended Pendant light made of aluminium housing and come with 1meter wire mounting accessories. Color finish have white or black. Suitable for residential, office and retail application.
