XAL

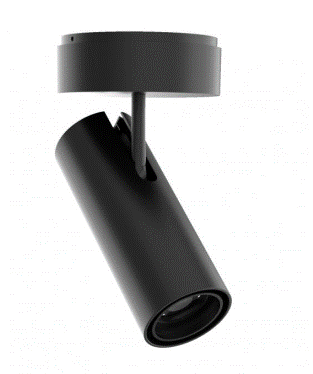

Single emission projectors for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 0.11 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 1 m length. The device features protection class III and can be wall lights, ceiling or floor-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

"Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process: 3 Step Process: 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 09 Maximum load capacity 1000 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

Funivia is a functional network of relationships, material and immaterial, free and inclusive capable of evolving through the cooperation of its elements. It starts from the essential, with a "mountaineer's" spirit it discovers a new level of freedom of light in spaces. A rope, the cable that carries energy, and nails, the fastening elements in space, are the basis for going far, overcoming the limits given by the rigidity of systems. The cable, with a special minimal cross-section but capable of supporting both mechanical and thermal stresses, is the energy distribution channel of the system and the load-bearing element on which the light elements are connected, it runs seamlessly in space transcending the limits of three dimensions. It is attached to the side, floor or ceiling through mechanical elements. It runs inside them without requiring to be cut and thus interrupted, drawing in space a network of regular lines, horizontal or vertical, but also freely inclined. From a single power point it can run indefinitely, the only limit being the power installed on its length. Funivia is not bound to a power grid or a predefined design, it can enter any space at any time and draw light with the utmost freedom, it can generate an extraordinary performance quality even without an ad hoc installation a specific intervention in the space. The light elements hook on the cable thanks to a "bridge" element, a kind of current-stealing lock that mechanically fixes the luminaire and takes energy from the cable. Also in this digital network each luminaire has its own identity, its own IP address, through which it can be managed with Dali systems or with Artemide App It is a sustainable approach at the level of production, distribution, installation, consumption, use, integration of elements that already exist without necessarily calling for the creation of new additional products. Funivia breaks a pattern common to existing lighting systems, breaking out of the rigidity of fixed modules (in space, stock, production).

Aluminium die cast housing in EN AB-44100 (low copper content) with high resistance against corrosion. Stone wash surface treatment prior to painting process. 2 mm thick front trim in Stainless Steel - Grade AISI 316L with 2,5 -3% molybdenum content, with high resistance against corrosion. Steel screws treated with an advanced anticorrosive coating. Pre treated Silicone Gaskets.Thanks to the set back optics, the light source remains recessed to the view, ensuring excellent visual comfort.
