XAL

SURFACE LINEAR LIGHT
INDOOR LIGHTING
MINO 60 HIGH LUMEN_046-47M5538H

Luminaire housing made of extruded aluminium profile; light-tight end caps in aluminium; angular design; surface jet black powder coated; luminaire, ball proof version to DIN 18032-3 and DIN 57710 part 13 / VDE 0710 part 13; not suitable for indoor tennis centers (or halls with comparable ball sizes); LED light inset consisting of highly reflective lacquered aluminium for improved thermal management

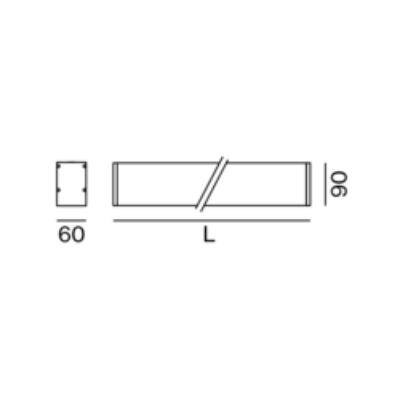

DIMENSION : L1000*W60*H90MM

Specification

Power
20W/M
Color Temperature
3000K
Light Source Type
LED
Lumen Output
87LM/W - 1475MM
Finishing
BLACK COLOR
IP Rating
IP20
Color Rendering
CRI 80
Driver
DALI DRIVER

See more

IGUZZINI
LINEAR DOWNLIGHT
INDOOR LIGHTING

Recessed rectangular luminaire with LEDs. Shaped steel sheet structural compartment with outer rim. The two linear elements with 15 lighting cells, in die-cast aluminium and independently adjustable, can be used to direct the emission with a tilting adjustability of +/- 20°. Metallised thermoplastic high definition optics, integrated in a rear position in the black anti-glare screen.

IGUZZINI
RECESSED DOWNLIGHT
INDOOR LIGHTING

Linear miniaturised recessed luminaire with 2 optical elements for LED lamps - fixed optics. Despite the ultracompact size of the product, the patented technology of the optic system guarantees an efficient flow and a high level of controlled glare visual comfort. Main body with die-cast zamak radiant surface, version with perimeter surface frame. Metallised, thermoplastic, high definition Opti Beam reflectors, integrated in a set-back position in the anti-glare screen.

NEKO
RECESSED DOWNLIGHT
INDOOR LIGHTING

Round recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; System Power 20W; measurements Ø110mm x 79mm; narrow mounting trim with a cutout of Ø100mm; ceiling thickness 1-30mm; luminaire's weight is approximately 420g; CCT 3000K with an System luminous flux of 2000lm; decent color rendering at an index of CRI80; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips.

LIGMAN
BOLLARD
OUTDOOR LIGHTING
Outdoor bollard made of die-cast aluminium housing extruded aluminium profile. Column pre-treated before powder coating ensuring high corrosion resistance. Single cable entry. One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable. Stainless steel fasteners in grade 304 with zinc flake coating (ZFC). Durable silicone rubber gasket.Frosted glass diffuser. Integral control gear. IP55,IK04.
