DALITEK

CONTROL SYSTEM

INDOOR LIGHTING

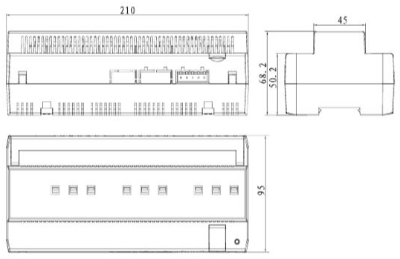

DR920-LC-S

Relay module support opening and closing of 9 channels 20A single pole single throw relays for resistive, inductive, capacitive load. 220V ± 10% 50Hz, 20mA. Phase-independent. Manual over-ride for any channel. Intelligent "built in" progragation can be set. Control input: 1 × RS485 network serial port input; 1 × AUX dry contact input. Internal control: Build in programmable logic controller. Network DC power: 90mA DC12V. Presets scenes: 96 (no loss of information due to power failure).

Specification

Power

Color Temperature

Light Source Type

Lumen Output

Finishing

BLACK

IP Rating

IP20

Color Rendering

Driver

ON/OFF DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.462 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 95 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

SIMES

SURFACE MOUNTED DOWNLIGHT

OUTDOOR LIGHTING

XAL

PANEL LIGHT

INDOOR LIGHTING

Round light fitting in aluminium; recessed light with wrap around edge; suitable for ceiling thickness of 10-25 mm; surface pure white powder coated; installation without tools using snap spring closure; external converter for ceiling insertion, through-wiring suitable; electrical connection by means of reverse polarity protected plug system; LED board highly reflective lacquered for higher efficiency; light colour 4000 K; ≤ 3 SDCM (initial MacAdam); CRI ≥ 90;
