Products

NEKO

ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
TSA3+M4P3-0272513A-NN

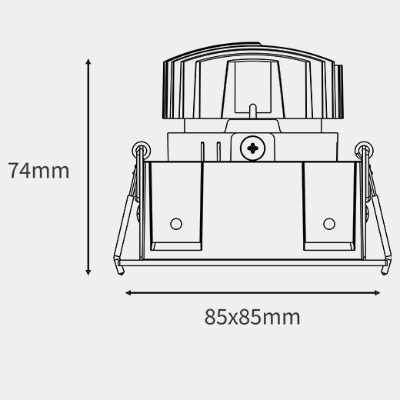

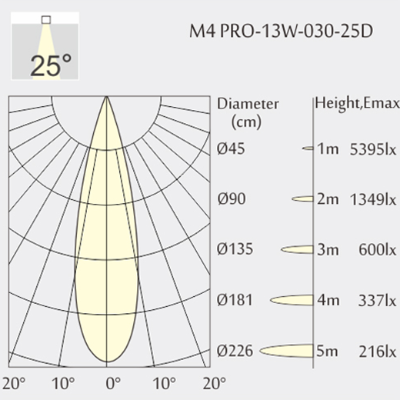

LED Module for NEKO CLUB trim made of die-cast aluminium; black powder-coating finish (RAL 9005); 0-10V Dim Driver; System Power 15W; measurement Ø50mm; luminaires height 76mm; CCT 2700K with a System Luminous Flux of 1050lm; high color rendering at an index of CRI97; SDCM: 2; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient BRIDGELUX LED Chips; 5 years warranty; beam characteristic with 25° beam angle; lighting perfectly suitable for reading, writing as well

Specification

Power
15W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
1050LM
Finishing
BLACK TRIM - BLACK REFLECTOR
IP Rating
IP20
Color Rendering
CRI97
Driver
0-10V DRIVER

See more

LINEALIGHT
SURFACE TRACKLIGHT
INDOOR LIGHTING
Single emission projectors for indoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
LUCE & LIGHT
SURFACE MOUNTED LIGHT
OUTDOOR LIGHTING

Wall mounted for outdoor applications, single beam surface mounted (wall). Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006. Appliance class: class III. Energy efficiency class: F (light source) in accordance with EU 2019/2015 tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption

NEKO
RECESSED DOWNLIGHT
INDOOR LIGHTING
Round recessed ceiling downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection according to DIN EN 60529 (IP20)
LINEALIGHT
CEILING LIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 6 powerled LEDs. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.390 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.17 m length. The device features protection class III and can be ceiling-mounted, with a 215 x 42 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
