NEKO

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

SUR1-9272404A-WW

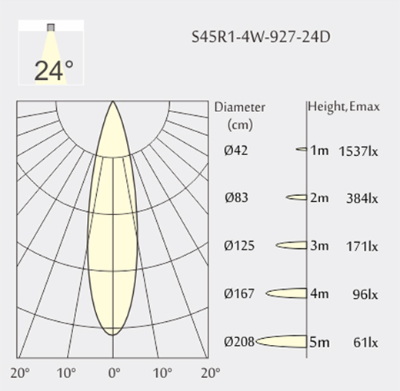

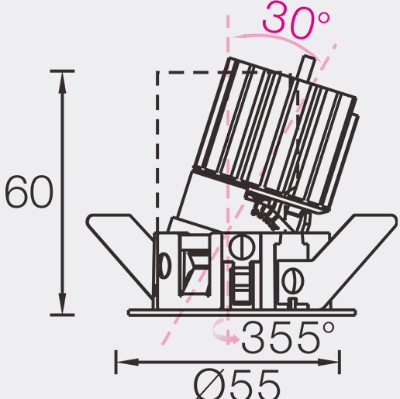

Round recessed ceiling downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; 1-10V Dim Driver; LED 4W; measurement Ø55mm; ceiling cutout of Ø45mm with a narrow mounting trim; luminaire’s weight is approximately 90g; CCT 2700K with an LED Output of 480lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CREE LED Chips; 5 years warranty; beam characteristic with 24° beam angle.

Specification

Power

Color Temperature

2700K

Light Source Type

LED

Lumen Output

330LM

Finishing

WHITE TRIM - WHITE REFLECTOR

IP Rating

IP20

Color Rendering

CRI 90

Driver

0-10V DRIVER

LED LINEAR

SURFACE LINEAR LIGHT

OUTDOOR LIGHTING

Modular luminaire with 8 different optics available and side cabling and a large panel of mounting options. Translucent end caps and special cable exit solutions make it easy to create infinite lines of light. Housing and mounting profile are also available in black for directly visible applications. Minimalistic form factor and several cable exit and connector options enable seamless integration.

LINEALIGHT

SURFACE MOUNTED DOWNLIGHT

OUTDOOR LIGHTING

Single emission ceiling downlights for outdoor application. The super warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 925 lm, with a 142.3 lm/W nominal luminous efficacy.

The device body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 0.528 kg. The power supply driver is not provided and is to be ordered separately.

The total absorbed power is 6.5 W.

The device features protection class III and can be ceiling-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.

FLOS

RECESSED DOWNLIGHT

INDOOR LIGHTING

Recessed luminaire with LED light source. Power supply not included.Diffusing lens included. FastPerfect pre-installation frame to be ordered separately. The ingress protection degree is IP20.
