LUMASCAPE

The luminaire housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: silver grey , all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, mounting bracket powder coated aluminum: 2 drilled holes Ø 8.5 mm, spacing 50‑70 mm, 1 centre hole Ø 17 mm, tilt range: 205°,

cable gland: M20, connecting terminal: 3 pole, efficient highgloss aluminum reflector in combination with hybrid lens fornarrow beam light distribution in shallow luminaire housing, DIMENSIONS: 280*75*280mm.

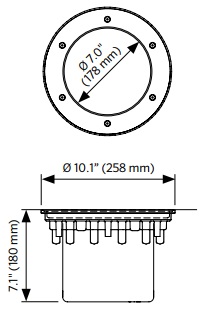

Luminaire cover made of cast bronze. Luminaire housing made of stainless steel. Safety glass with optical structure Silicone gasket. Recessed opening ø 180 mm Required installation depth 125 mm Fixing is achieved by using two adjustable wedge-shaped claws. Protection class IP 65 Dust-tight and protection against water jets Impact strength IK07.

Direct light linear luminaire, designed to use monochrome LED lamps. For ground and wall installations,, the product requires an outer casing (to be purchased separately). The outer casing is not required for installations in panelled walls and ceilings. The body is made of extruded aluminium and includes die-cast aluminium end caps with 50/60 Shore A silicone seals.Fitted with an Opti Beam Lens optical system with a Wall Grazing Wide Flood optic.

Recessed adjustable downlight made of aluminium housing with white powder coated finish. Inner reflector available in Silver, Chrome black, Mirror chrome and white color finish. Suitable for shopping mall, hotel, retail shop application.
