PENGKE LIGHT

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

LINAN_XQ-100302E95-2

The XQ-10030 Series is a recessed double downlight with twin 20W CREE LEDs, delivering up to 2499 lumens with CRI ≥90. Its pill-shaped form and beam options (15°/24°/38°) provide precise, clean illumination ideal for retail or healthcare spaces. Available in multiple finishes, IP44 rated.

Specification

Power

2X20W

Color Temperature

4000K

Light Source Type

LED

Lumen Output

2x2167LM

Finishing

WHITE

IP Rating

IP44

Color Rendering

>90

Driver

DALI DRIVER

NEKO

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

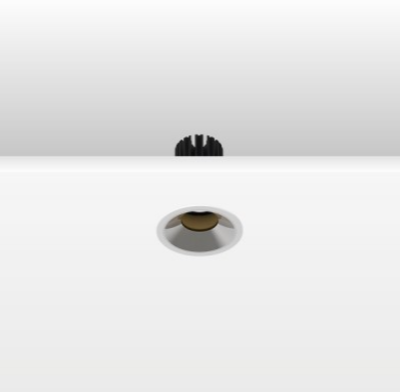

Round recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; System Power 28W; measurements Ø162mm x 190mm; ceiling cutout of Ø150mm with a narrow mounting trim; ceiling thickness 1-35mm; rotation 355° and pivot max. 30°; CCT 3000K with a System luminous flux of 2600lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 24° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP54; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a spot light distribution is composed of 12 powerled LEDs. The device body is made of uv resistant polycarbonate and features a transparent finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP67; the total weight is of 0.39 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be wall lights, ceiling or floor-mounted with an outer casing, code 98843 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

PLATEK

WALL LIGHT

OUTDOOR LIGHTING

Wall luminaire front frame and back cover in die-cast aluminium with very low copper content. Wall fixing bracket in painted stainless steel. No visible screws. High luminous efficiency diffusing PMMA lens. This allows to have a high interdistance installation between several fixtures while maintaining uniform illumination. The product is painted continuous two step paint process (epoxy-based primer + polyester base color finish) which allow to generate a single thick protective coating. IK08
