LUMASCAPE

INGROUND UPLIGHT

OUTDOOR LIGHTING

TERRALUZ TE5_LS3150_65D

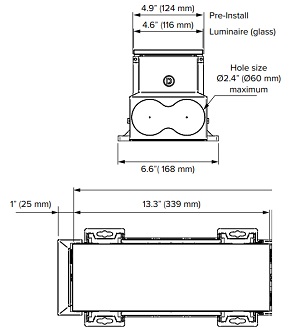

A high-output linear in-ground brings together the best technology in a simple yet stylish linear form factor with bezel-less edge-to-edge glass finish. With a ±15º tilt adjusment, the Terraluz TE5 is a versatile, highperformance luminaire. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ suits both highly granular DMX/RDM control requirements and standard white light dimming via common protocols. Fixtures can be installed endto-end for continuous linear lighting. Available in white, color-changing and tunable white light engines. DIMENSION: 339(L)*124(W).

Specification

Power

12W/330MM

Color Temperature

3000K

Light Source Type

LED

Lumen Output

7167LM

Finishing

ALUMINIUM BLACK

IP Rating

IP66

Color Rendering

CRI80

Driver

ON/OFF DRIVER

IGUZZINI

RECESSED DOWNLIGHT

INDOOR LIGHTING

Round recessed luminaire with contact frame. Fixed Super Comfort version: the LEDs are set a long way back to minimize glare and guarantee a high level of visual comfort. The main body is made of die-cast aluminium with a radiant surface that guarantees optimum heat dissipation. Metallised, thermoplastic, high definition reflector - medium optic. Structure with die-cast aluminium external contact frame with a single white finish.

LUCE & LIGHT

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

Altopiano downlights expands the possibilities of ambient lighting in the hospitality and residential sectors: it combines a versatility of 3 different sizes and shape with a multiplicity of atmospheric light colours. Range from 2200K to 4000K, RGBW and Dim to Warm intensity/colour adjustment. Altopiano downlights offer great visual comfort, with their recessed optics and possibility of building in a honeycomb louvre and anti-glare shield with concentric rings, as well as a UGR 19 with the narrow, medium and wide optics.The body is made of thermally conductive technopolymer (with a thermal conductivity equal to that of stainless steel), giving it outstanding corrosion resistance. IP66.

WE-EF

INGROUND UPLIGHT

OUTDOOR LIGHTING

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens, max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 1.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. 20° tiltable and 355° rotatable. 1-10 V analogue dimming or DALI interface available on request. Luminaire installation blockout and sealable junction box included in supply.
