LED LINEAR

INGROUND UPLIGHT

OUTDOOR LIGHTING

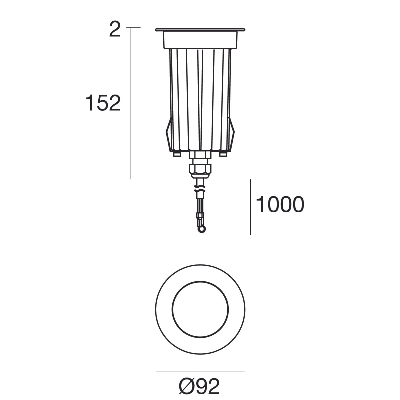

Suelo_R_76203W30

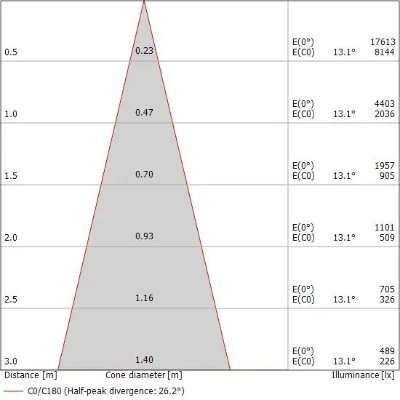

Single emission uplights for outdoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1087 lm, with a 135.9 lm/W nominal luminous efficacy.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1087 lm

Finishing

STAINLESS STEEL

IP Rating

IP66

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

LUCE & LIGHT

SPOTLIGHT

OUTDOOR LIGHTING

Compact 14W outdoor projector for surface or spike mounting (ceiling, wall, ground). Delivers 862 lm (3000K, CRI >90) with a 37° beam, adjustable 13°–68° via included magnet. Made from corrosion-resistant ANTICORODAL aluminium with tempered glass screen, IP66 and IK08 rated. Features Casambi control, Intelligent Protection System, and operates in -20°C to +45°C. Size: Ø60x96 mm, weight: 640 g. Accessories and custom finishes available.

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Recessed adjustable square downlight, luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.

CDN LIGHTING

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Fixed and adjustable in one; When tilting at any angle, patented spherical shielding design helps prevent light leak and gap. Special moving gear tilt design provides stabilized torque for accurate tilt with sound and force feedback when rotating. Besides, Bach 5s series have pull ring equipped for easy maintenance and internal angle mark for accurate aiming. Professional optics, precise and round light spot.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a wide flood light distribution is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98724 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
