PROLICHT

ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
220-0256

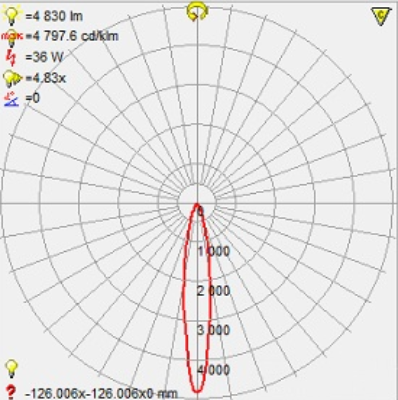

The recessed spot MECHANIQ SQUARE EFFICIENCY DOUBLE from the familiy MECHANIQ consists of aluminum-die-cast. With 3 powder coated options 15625 colour combinations can be achieved. Stated photometric values correspond to operation by 500 mA; a suitable ballast needs to be sourced separately and is not scope of delivery. Dimming (# 220-0256) depends on the used ballast and may vary. The spot with direct illumination corresponds to protection class SK3 at IP20. Multiple applications possible due to comprehensive adjustment options. Rotability is 355° and additionally MECHANIQ SQUARE EFFICIENCY DOUBLE is tiltable by 45°. A PROLICHT lense pack is optionally available.

Specification

Power
LED 34 W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
4840 lm
Finishing
Crystal white
IP Rating
IP20
Color Rendering
CRI 90
Driver
Driver - on/off, 1-10V, Dali

See more

IGUZZINI
LINEAR DOWNLIGHT
INDOOR LIGHTING
Recessed luminaire consisting of a lamp device and a 3-cell emission raster - model with operating components to be ordered separately. Version for UGR < 19 controlled luminance lighting - in compliance with the standard for use in environments with video monitors. LED lamps with high color rendering index. Main body made of extruded aluminium - anodised finish - cast zamak end caps - natural finish. Polycarbonate LED lamp support. Steel wire fixing springs. The optical system consists of a translucent textured methacrylate raster, created with a catadioptric system (patented Opti Beam Diamond optic) - with no galvanic treatments - combined with a gloss finish PET cover.
ACCLAIM
WALLWASHER
OUTDOOR LIGHTING

The AL Graze AC is a high power, low profile, outdoor linear LED fixture with a wired digital communication network. Length available in 305, 610 and 1220mm, it offers multiple configurations, including RGB, RGBW, and Dynamic White. Featuring a robust IP66 housing, onboard AC and DMX driver with RDM addressing, and linkable cable system, it is the perfect option for any structure that calls for indoor or outdoor linear grazing.

LINEALIGHT
INGROUND UPLIGHT
OUTDOOR LIGHTING
Single emission uplights for outdoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The device luminaire is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP68, IK10.
WAKO
WALLWASHER
INDOOR LIGHTING

NANO wall washer luminaire is made of high illuminance uniform, light distribution, single bin and compact size. Adjustable lighting angle. DIMENSION: 18 mm (W) x 15.5 mm (H). Unit Length 1000mm 500mm 300mm. Number of LED per meter 60, LED Type NICHIA. CRI 80 90 Lifetime 50000 hrs Lumen Power Input 350mA Constant Current, Dimming 0-10V 1-10V DALI DMX PWM, IP20.
